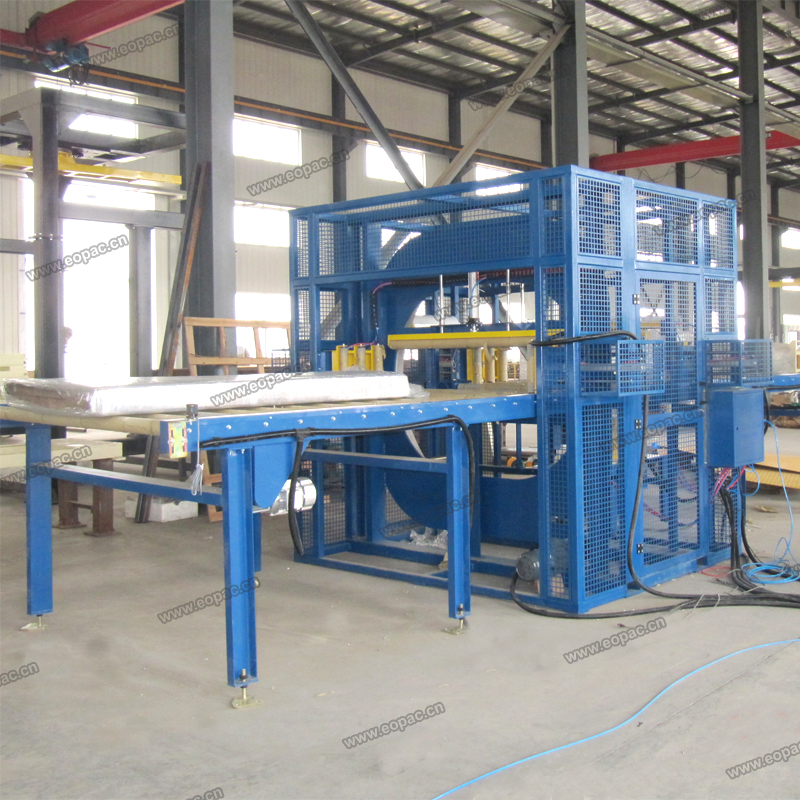

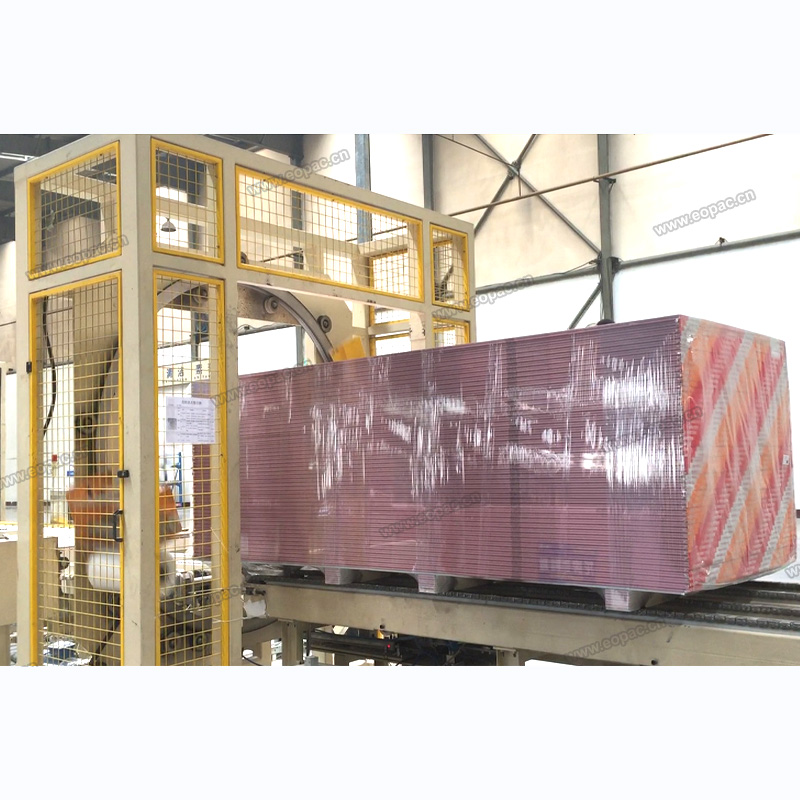

Horizontal Stretch Wrapping Machines combine with the conveyors and realize automatic packing.
Ring sizes from 400mm to 2200mm to custom build for horizontally wrapping your loads.
Size of The Loads to be Wrapped | |
Packing efficiency | 4m-7m per min (Based on Film width=500mm) |
Min load diagonal | 600mm (24’’) |
Max load diagonal | 1700mm ( 67’’) |
Max load weight | Depend on conveyor |
Film Delivery System | |
Carriage | Brake film carriage |
Ring Size Drive | |
Ring Inner Dia. | 2000mm (79’”) |
Ring drive | Belt drive |
Ring rotation speed | 15-25rpm ( adjustable) |
Ring soft start & stop | YES |
Conveyor | Height=800mm (Standard ) |
Other Performance | |
Load position sensing by photocell | YES |
Machine safety stop when door open | YES |
Film Clamp & Cut Unit | |
Cutter | Yes (blade) |
Film tail clamp unit | Yes ( Pneumatic control) |
Pneumatic system (customer supply) | 0.6-0.8Mpa |
Electrical Features | |
Power supply voltage | 380 V 3 Phase - 50/60 Hz |
Power | 2.2 Kw (Not include conveyor) |
Machine weight & size | |
Machine size | 2800mm (L) |
Approximate Machine net weight | 1000kg |
Stretch Film Roll detail | |
Film Max. external diameter (D): | 230 mm |
Internal diameter (d): | 76 mm |
Film width: | 500 mm (20’’) |
Film thickness: | 17-35 µm |
1. Advanced & high-resolution Siemens control system.
2. Siemens 7‘’ touch screen is easy to operate.
3. Four wrapping programs and By-pass are available for the customer to choose.
4. Customers can adjust the packing layers according to their handling and transportation needs.
5. Automatic packaging for different board sizes without manual operation.
6. When stretch wrapping finish, the film will be cut and clamped automatically.
7. Optional: Automatic bottom skid feeding. Insert the skid underneath the stack boards. Easy to unload and store the wrapped boards.
8. The safety fence is equipped with interlocked system.
Looking for the Horizontal Orbital Stretch Wrapper?
Contact us soon. And our experienced technicians will design and make according your product size and workshop layout.
