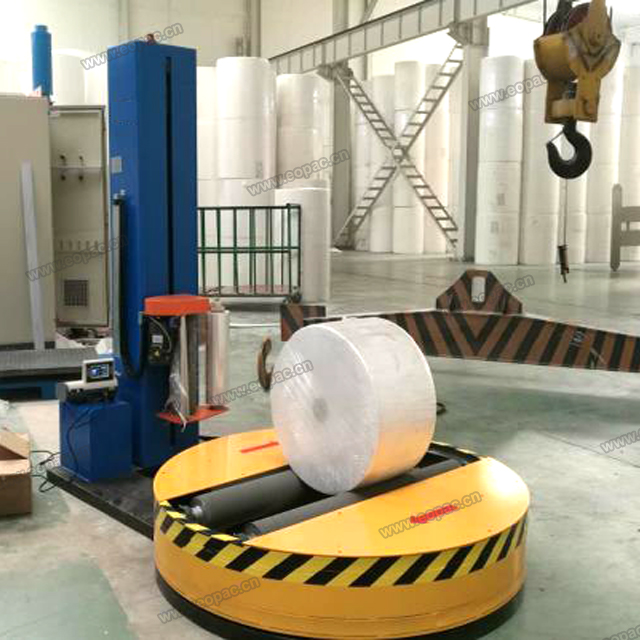

Rolls Stretch Wrapping Machine

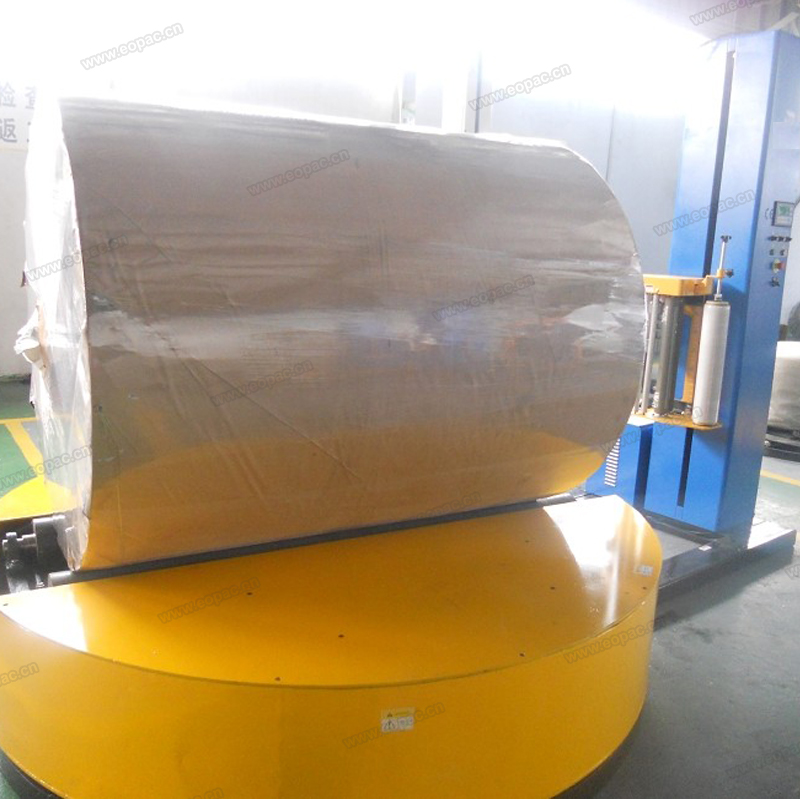

Reel wrapper is designed for packing paper rolls, woven fabrics etc. This machine provides a cocoon-type packing and protects the product from damage, moisture and dust. Ensure your rolls are properly wrapped and arrive at your customers’ locations in “as made” conditions.

Share:
Brochure

Product Details

      EY2000PPS Advantage:

      1. With power pre-stretcch film carriage, help you save 30%-50% on packing cost.

      2. Advanced PLC controller & 7'' colorful touch screen, easy to operate.

      3. Heavy-duty design ensures long life and minimum maintenance.


    Size of rolls to be Wrapped

    Roll diameter

    500mm-1800mm

    Roll width

    500mm-2000mm

    Max weight capacity

    2000kg (4400lbs)

    Machine Performance

    Packing efficiency

    20-30 rolls/hour

    Turntable diameter

    2000mm

    Turntable roller center distance

    420mm

    Turntable roller diameter

    130mm

    Turntable height

    400mm

    Turntable soft start & stop

    YES

    Turntable rotation speed:

    3-12 rpm adjustable

    Turntable drive

    Chain drive

    Carriage Up/down Speed

    Adjustable

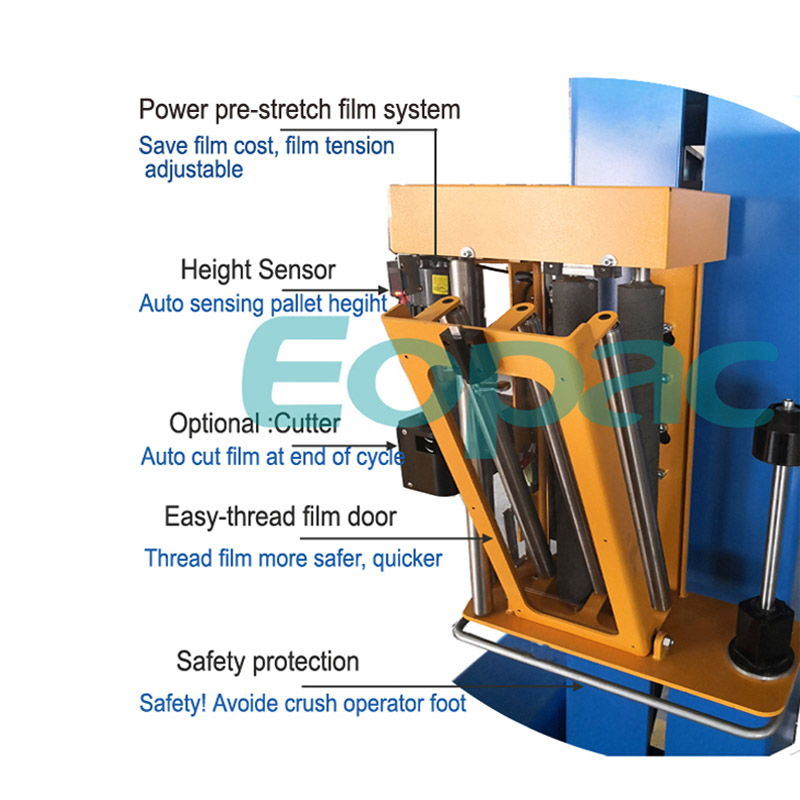

    Film Delivery System

    Carriage

    1.Power pre-stretch Film Delivery   System, stretch ratio up to 250%.
        Help you save Packing cost= Save money!!

    2.Film tension adjustable

    Electrical Features

    Power supply voltage

    220 V 1Phase – 50/60 Hz

    Power

    2.0Kw

    Machine Weight & Size

    Machine size (LXWXH)

    3025mm X2000mm X2260mm

    Machine weight

    N.W. 100KG   G.W.110KG


    And also we can custom made according your rolls width & diameter. And optional can be choose depend on your roll specification.

    E.g. Top Platen (EY2000PPS-TP), Auto Ejector(EY2000PPS-AU) , Heavy rolls up to 3000kgs (EY2000PPS-BT)


    Options available to custom build to meet specific needs


    1.PAPER ROLL REJECT SYSTEM

    Turntable rolls raise up after wrapping finished to Push out the wrapped rolls , easy to unload the rolls


    2.TOP PLATEN

    Add top platen to protect the unstable rolls during stretch wrapping


    3.AUTO FILM CUT-OFF

    Cut film tail automatic after stretch wrapping cycle finished, save operator time


    4.WEIGHT SCALE

    Weighing the roll weight at the same time of wrapping.




    4. SLEW BEARING DRIVE

    Design for rolls more than 2000kgs, this machine Weight capacity up to 3000kgs
