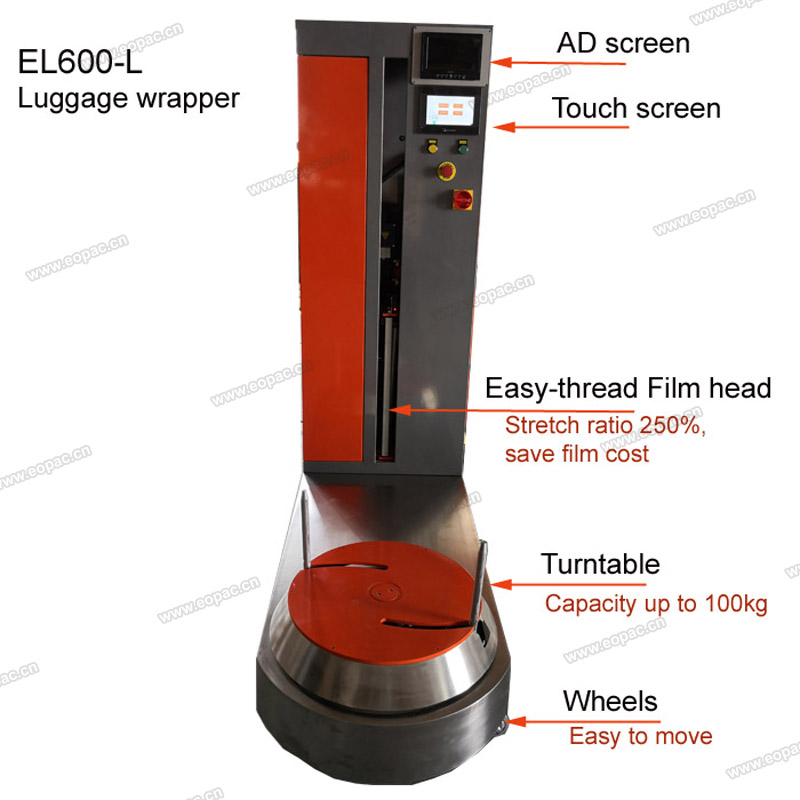

EL600-L Airport Luggage Wrapping Machine

EL600-L Airport Luggage Wrapping Machine

  • Specification
  • Options
  • Application
  • Video

    Machine                                                    EL600-L


    Size of The Loads ( Pallets)  to be Wrapped


    Max luggage size (LXWXH)

    (250-1200)mm*(200-500)mm*(250--900)mm


    Max weight

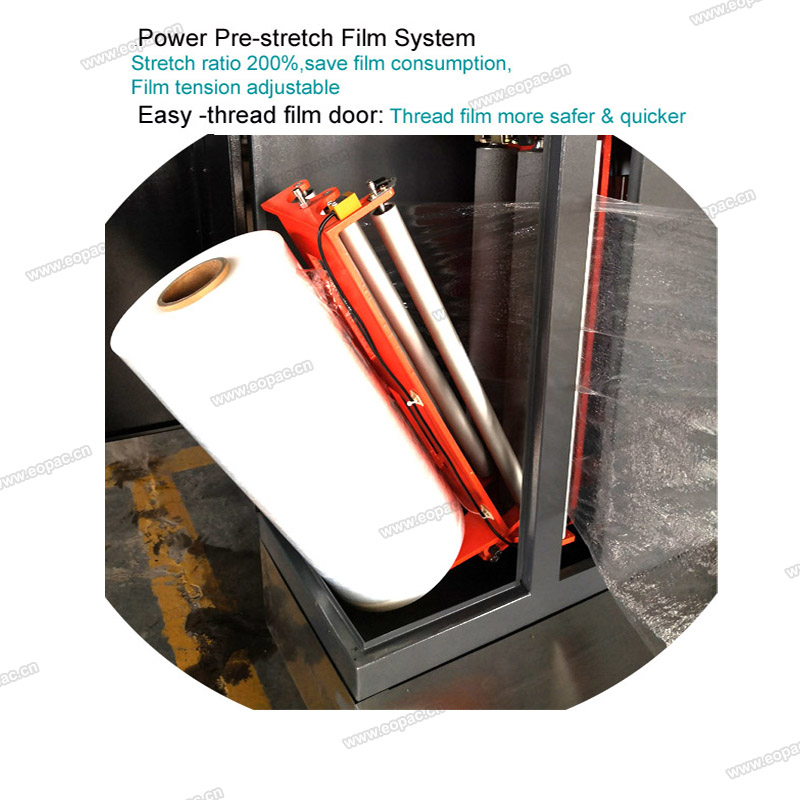

    Film Delivery System

    Power pre-stretch Film Delivery System
    Open-door carriage ensure easy thread film,more quicker,faster&safer

    Film tension adjustable




    Machine Performance


    Packing efficiency

    40-60 luggages/hour

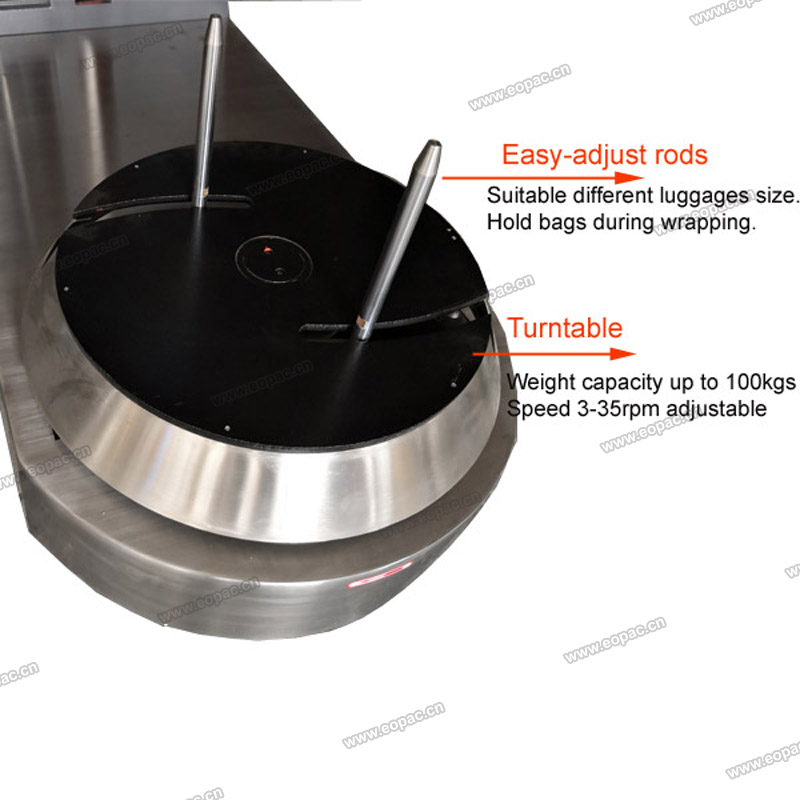

    Turntable rotation speed:

    3-35 rpm adjustable


    Turntable height

    350mm


    Voltage / Power

    220 Volt 1 Ph - 50 Hz  0.75kw


    Machine size (LXWXH)

    1600mmx630mmx1670mm




    Package size(LXWXH)

    1650mm x 710mmx 1900mm


    Machine Weight

    Net: 220kgs   Gross:290kg


    Options available (Extra cost)



    Increase scale

    YES


    Increase TV screen

    YES


    Control System



    PLC + Display, easy to setting parameters


    Counter to count numbers of baggage

    YES


    Turntable soft start

    YES


    Carriage Up-Down

    YES, Speed adjustable


    Stretch Film Roll detail



    Max. external diameter (D):

    220mm


    Internal diameter (d):

    76 mm


    Film roll height (h):

    500 mm


    Film thickness:

    17-35 µm



    Avaliable Options (Extra cost for tailor make according your application)


    TV Screen

    TV screen has advertisement function.With an 4G RAM of memory card that can save advertisement videos



     Scale & scale display

     Weight and wrap luggage at the same time, Display the weight via this display
