| Size of The Loads ( Pallets) to be Wrapped | ||
| Min load size | 500mm (L) X 500mm (W) | |
| Max load size | 1200mm (L) X 1200mm (W) | |
| Max load size diagonal (Recommend) | 1650mm (70'') | |
| Max load height | 2400mm (94'') (Option: 2800mm, 3000mm) | |
| Max load weight | 2000kgs (4400lbs) (Option: 2500kgs, 3000kgs) | |
| Film Delivery System | ||
| Carriage | Power pre - stretch Film Delivery System, stretch ratio up to 300%. Help you save Packing cost= Save money!! Carriage door opens for effortless roll change and thread film Film tension adjustable | |
| Machine Performance | ||
| Packing efficiency | 30-40 loads / hour | |
| Load height sensing by photocell | YES | |
| Turntable soft start & stop | YES | |
| Turntable rotation speed: | 3-12 rpm adjustable | |
| Turntable diameter | 1650mm (65'') | |
| Turntable height | 78mm | |
| Move machine with forklift | Front & Rear | |
| Carriage Up / down Speed | Adjustable | |

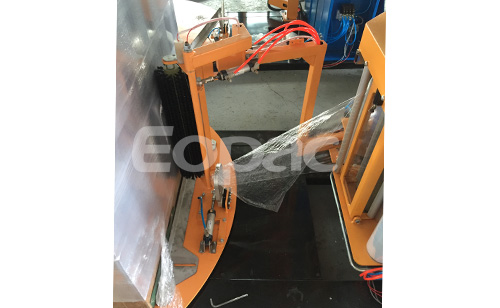

| Film Automatic Clamp & Cut Unit | ||
| Cutter | Yes (Hot wire cutter) | |
| Film tail wipe unit | Yes ( Pneumatic control) | |
| Film tail clamp unit | Yes ( Pneumatic control) | |
| Pneumatic system | 0.6-0.8 Mpa 1000ml / min | |
| Electrical Features | ||
| Power supply voltage | 220 V 1 Phase - 50/60 Hz | |
| Power | 1.5Kw | |
| Machine weight & size | ||
| Machine size | 2675mm (L) 1650mm (W) 2860mm (H) (105'' L X 65''W X 112'H') | |
| Approximate Machine net weight | 700kg | |
| Stretch Film Roll detail | ||
| Film Max. external diameter (D): | 230 mm | |
| Internal diameter (d): | 76 mm | |
| Film width: | 500 mm (20'') | |
| Film thickness: | 17-35 µm | |
Options available to custom build to meet specific needs
RAMP
Lets operator easy to place the load on the turntable of stretch wrapping machine with a pallet jack.
BIGGER TURNTABLE DIAMETER
Increase length and width of your loads: 1800mm; 2000mm
WEIGHT CAPACITY
Increase weight capacity for heavy loads (2500kgs, 3000kgs);
EXTEND PACKING HEIGHT
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm

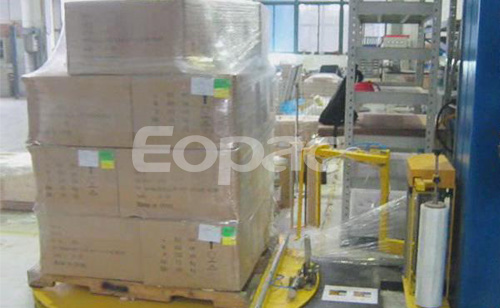

Our Stretch wrapping machines ensure your loads(pallets) are properly wrapped and safety shipped, reducing shipping damage in the supply chain.
