| Size of The Loads ( Pallets) to be Wrapped | |
| Min load size | 500mm (L) X 500mm (W) |
| Max load size | 1200mm (L) X 1200mm (W) |
| Max load size diagonal (Recommend) | 1650mm (65'') |
| Max load height | 2400mm (94'') (Option: 2800mm, 3000mm) |
| Max load weight | 800kgs(1760lbs) |
| Film Delivery System | |

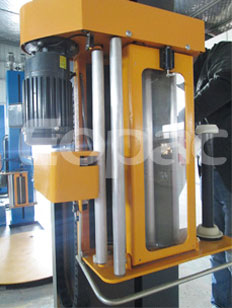

| Carriage | Power pre-stretch Film Delivery System, stretch ratio up to 300%. Help you save Packing cost= Save money!! Carriage door opens for effortless roll change and thread film Film tension adjustable |
| Machine Performance | |
| Packing efficiency | 20-40 loads / hour |
| Load height sensing by photocell | YES |
| Turntable soft start & stop | YES |
| Turntable rotation speed: | 3-12 rpm adjustable |
| Turntable diameter | 1650mm (65'') |
| Turntable height | 86mm |
| Safety Forklift stop PE | YES |
| Move machine with forklift | Front & Rear |
| Carriage Up/down Speed | Adjustable |
| Electrical Features | |
| Power supply voltage | 220 V 1 Phase - 50/60 Hz |
| Power | 1.5Kw |
| Machine weight & size | |
| Machine size | 2675mm (L) 1650mm (W) 2860mm (H) (105'' L X 65''W X 112'H') |
| Approximate Machine net weight | 650kg |
| Stretch Film Roll detail | |
| Film Max. external diameter (D): | 230 mm |
| Internal diameter (d): | 76 mm |
| Film width: | 500 mm (20'') |
| Film thickness: | 17-35 µm |
AUTO FILM CUT-OFF
Cut film tail automatic after stretch wrapping cycle finished, save operator time

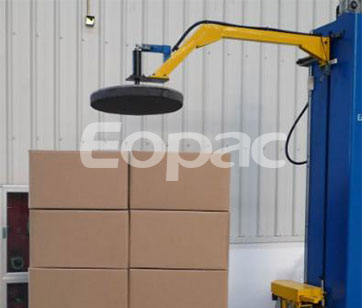

MOTORISED TOP PLATEN
Add mortorised top platen to protect the unstable products during stretch wrapping
BIGGER TURNTABLE DIAMETER
Increase length and width of your loads: 1800mm; 2000mm
EXTEND PACKING HEIGHT
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm

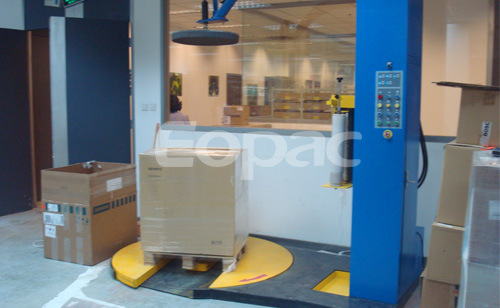

Our Stretch wrapping machines ensure your loads(pallets) are properly wrapped and safety shipped, reducing shipping damage in the supply chain.
