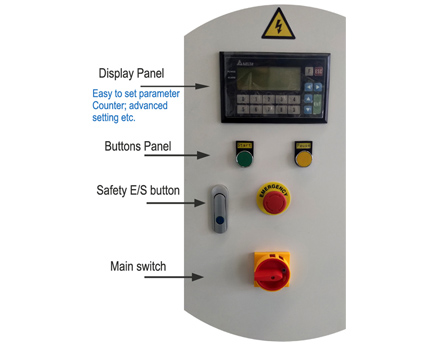

Control System : Advanced PLC + Display (Easy to operation) | |
Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 500mm (L) X 500mm (W) |
Max load size | 1200mm (L) X 1200mm (W) |
Max load size diagonal | 1800mm (70``) |
Max load height | 2400mm (Option:1800mm, 2800mm) |
Max load weight | 2000kgs(4400lbs) (Option: 2500kgs, 3000kgs) |
Film Delivery System | |
Carriage | Mechanical brake film head, film tension adjustable |
Machine Performance | |
Packing efficiency | 20-40 loads/hour |
Load height sensing by photocell | YES |
Turntable soft start & stop | YES |
Turntable rotation speed: | 3-12 rpm adjustable |
Turntable diameter | 1650mm (65``) |
Turntable height | 78mm |
Move machine with forklift | Front & Rear |
Carriage Up/down Speed | Adjustable |
Electrical Features | |
Power supply voltage | 220 V 1 Phase - 50/60 Hz (Option:110V,1P) |
Power | 1.2Kw |
Machine weight & size | |
Machine size | 2600mm (L) x 1650mm (W) x 2860mm (H) |
Approximate Machine net weight | 600kg |
Stretch Film Roll detail | |
Film Max. external diameter (D): | 250 mm |
Internal diameter (d): | 76 mm |
Film width: | 500 mm (20``) |
Film thickness: | 15-35 µm |
Ramp:
Easy to place the load on the turntable of stretch wrapping machine with a pallet jack.
Bigger Turntable Diameter ( Pallet Wrapping Machine for Big Pallet)
Increase length and width of your loads: 1800mm; 2000mm
Weight Capacity (Stretch Wrapper for Heavy Pallet）
Increase weight capacity for heavy loads (2500kgs, 3000kgs);
Extend Packing Height ( Stretch Wrapper for High Load）
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm
-
