  • EH-3015L+ST-5030LG Economic Fully-auto Side Sealer & Shrink Tunnel

EH-3015L+ST-5030LG Economic Fully-auto Side Sealer & Shrink Tunnel

EH-3015L is an economical fully-auto unmanned operation side sealer , which is widely used in mass production assembly line with auto-feeding, conveying, sealing, shrinking in one time. It is high working efficiency and suits for the products of different height and width
Share:
Brochure

Product Details

    Model          EH-3015LST-5030LG
    Power1.8kw16kw
    Power SupplyAC 380/220V 3PH 50/60HzAC 380/220V 3PH 50/60H
    Max Packing Sizes L×W×HL(unlimited)×W300×H150mmW400×H200 mm
    Tunnel Size L×W×H/1500×500×300mm
    Sealing Blade Length490mm/
    Packing Speed15m/min.0-20m/min
    External Air Source6-8kg/cm2/
    Shrink FilmPE/POFPOF
    Machine Size L×W×H1615×960×1550mm1800×985×1315mm
    Packaging Size L×W×H1700×950×1700mm1850×1035×1465mm
    G./N. Weight560/520kgs493/453kgs


    EH-3015L is an economical fully-auto unmanned operation side sealer , which is widely used in mass production assembly line with auto-feeding, conveying, sealing, shrinking in one time. It is high working efficiency and suits for the products of different height and width;

    ● The horizontal blade of sealing part adopts vertical driving, while the vertical cutter uses international advanced thermostatic side cutter; The sealing line is straight and strong and we can guarantee seal line in the middle of the product to achieve perfect sealing effect;

    ● When it packs different sizes, the adjustment is very simple by rotating the hand wheel to increase the reliability;

    ● The machine adopts the most advanced Fatek PLC programmable controller, with safety protection and alarm devices, while the sealing system can have a continuous sealing order without replacement; Maintenance is very simple;

    ● Feeding length controls through a combination of electric eye detection and time relay to control precise film length that makes it easier to control the contraction effect;

    ● Two groups of horizontal and vertical electric eyes are easy to switch for thin or small packages which can easily complete sealing packaging operations;

    ● Automatic rolling waste material : Using a separate motor to control which is not too loose or too tight to crack and is easy to remove the waste;

    ● It has automatic blowing function;

    ● Front in feeding power conveyor and back non-power storage table can be selected as your demands.

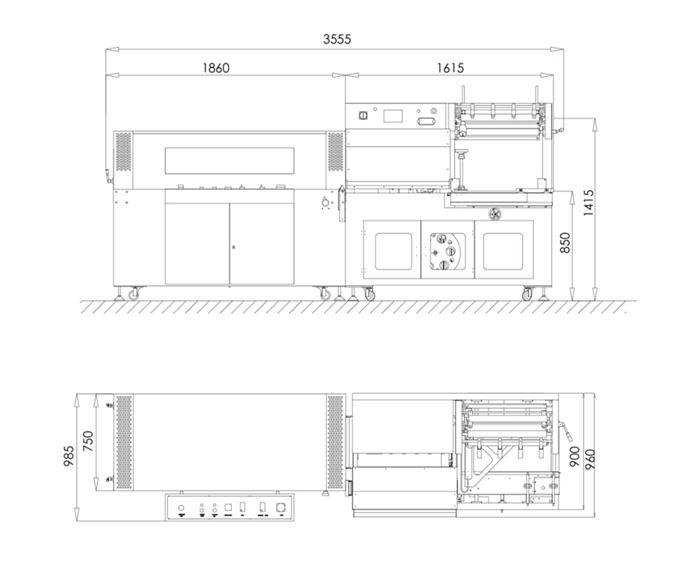

    LAYOUT

    LAYOUT


    We can offer customized machine according to the size of your products!

    We can replace the configuration according to your needs!

    customized machine
