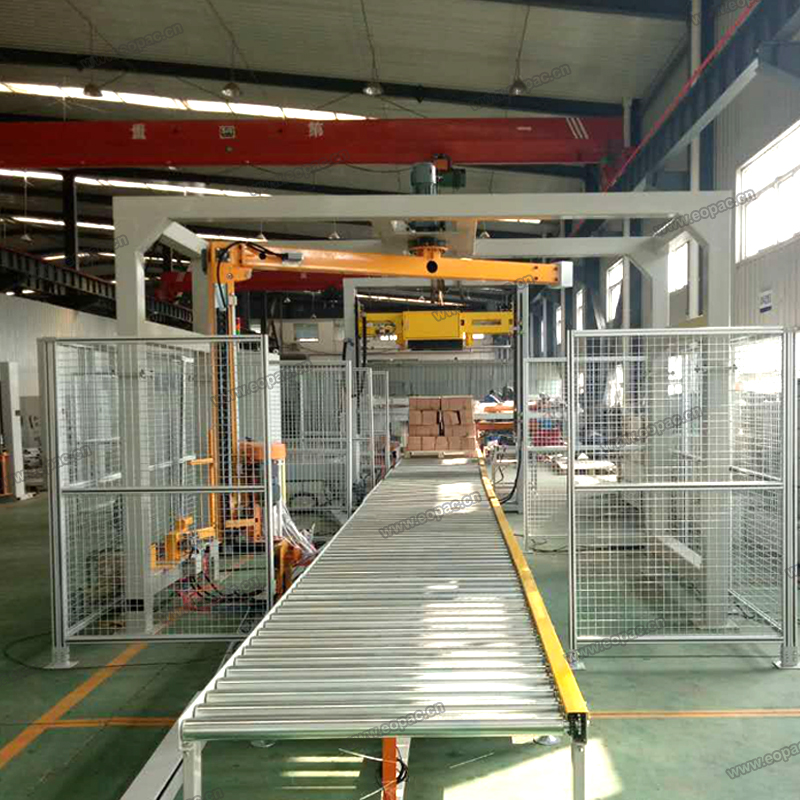

EAR400PPS –ATR Rotating Arm Stretch Wrapping Machine

EAR400PPS –ATR Rotating Arm Stretch Wrapping Machine

  • Specification
  • Options
  • Application
  • Video
    Size of The Loads ( Pallets)  to be Wrapped
    Min load size500mm (L) X 500mm (W)
    Max load size1300mm (L) X 1200mm (W)
    Max load size diagonal (Recommend)1800mm (70'')
    Max load height2000mm (79'') (Option: 2400mm)
    Max load weight2000kgs (depend on conveyor weight capacity)

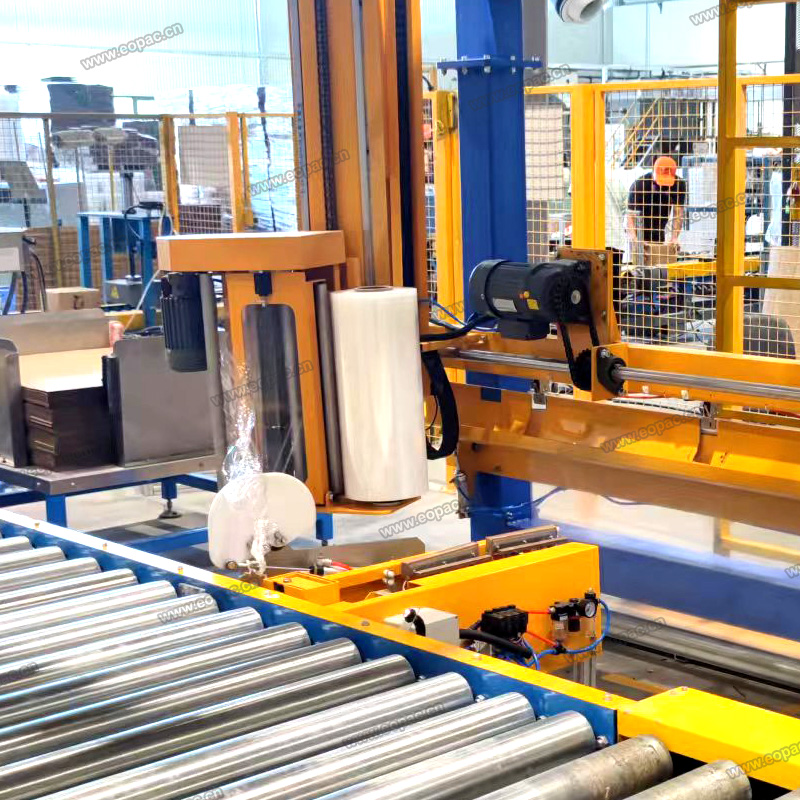

    Film Delivery System
    CarriagePower pre-stretch Film Delivery System, stretch ratio up to 300%.
    Help you save Packing cost= Save money!!
    Carriage door opens for effortless roll change and thread film
    Film tension adjustable
    Machine Performance
    Packing efficiency20-40 loads/hour
    Load height sensing by photocellYES
    Wrap arm soft start & stopYES
    Wrap arm rotation speed:3-15 rpm adjustable ( 25rpm is option)
    Wrap arm Zone
         ( rotating inner diameter)
    2180mm (86'')
    Wrap arm driveSlew bearing drive
    Wrap Arm Safety StopRotary arm stop by safety bumper and reflection PE sensing any obstacle in the rotating area.
    Carriage Up/down SpeedAdjustable
    Electrical Features
    Power supply voltage380 V 3 Phase - 50/60 Hz
    Power2.5Kw
    Machine weight & size
    Machine size4050mm (L)
    1800mm (W)
    3100mm (H)
    Approximate Machine net weight1000kg (not include conveyor)
    Powered Roller Conveyor
    Roller conveyor length4200mm
    Roller length1200mm (standard)
    Conveyor height450mm (Option 300mm - 600mm)
    Roller diameter80mm (Option 89mm)
    Stretch Film Roll detail
    Film Max. external diameter (D):230 mm
    Internal diameter (d):76 mm
    Film width:500 mm (20'')
    Film thickness:17-35 µm

    Options available to custom build to meet specific needs



    EXTEND PACKING HEIGHT

    Increase the stretch wrapper wrap heights for your loads:2400mm 2800mm



    WRAP ARM SPEED: 25RPM

    Arm rotation speed is increased to 25RPM. Includes stronger machine frame, big slew bearing etc.

    Wrap capacity up to 40-50 pallets/hour.

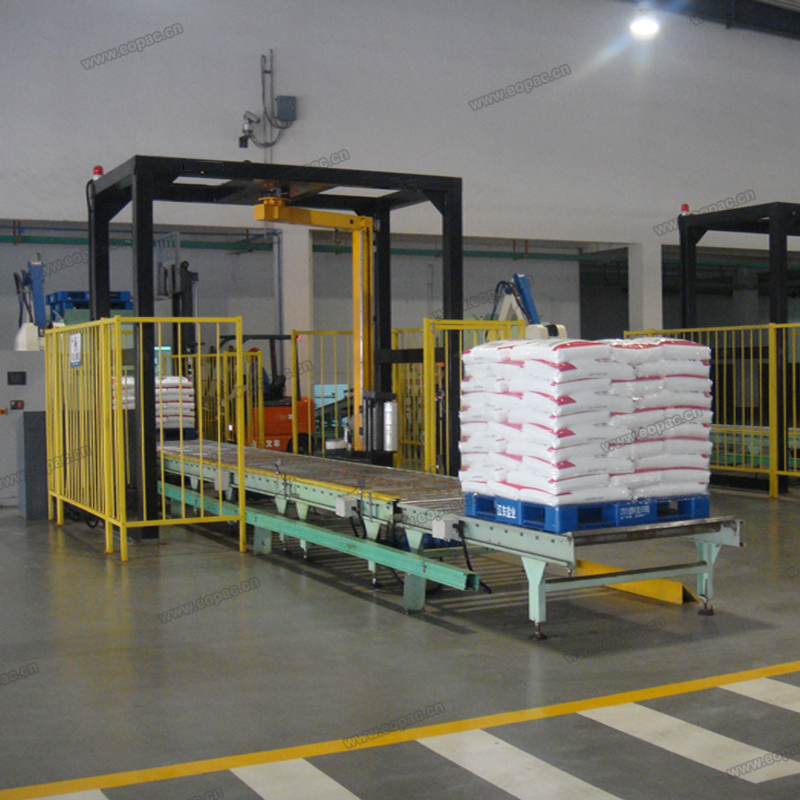

    CHAIN CONVEYOR

    CHAIN CONVEYOR

    For pallets which has small legs or pallet bottom slats is parallel with the movement directions.



    TOP SHEET COVER

    TOP SHEET COVER

    Independent structure device for covering the top of the pallet for protection against dust. It can be easily installed on existing wrapping lines.



    PNEUMATICALLY PALLET LIFTING DEVICE

    PNEUMATICALLY PALLET LIFTING DEVICE

    The pneumatic lifting device, inserted in the middle of the machine centre conveyor of the wrapper allow the load and the wood pallet to be completely wrapped.
