High Speed Fully Automatic Rotary Arm Wrapper

This fully automatic Rotary arm Stretch Wrapping Machine is designed for paper roll packing with stretch film. Arm ration speed up to 28rpm, packing efficiency up to 50-60 rolls per hour.

Share:
Brochure

Product Details

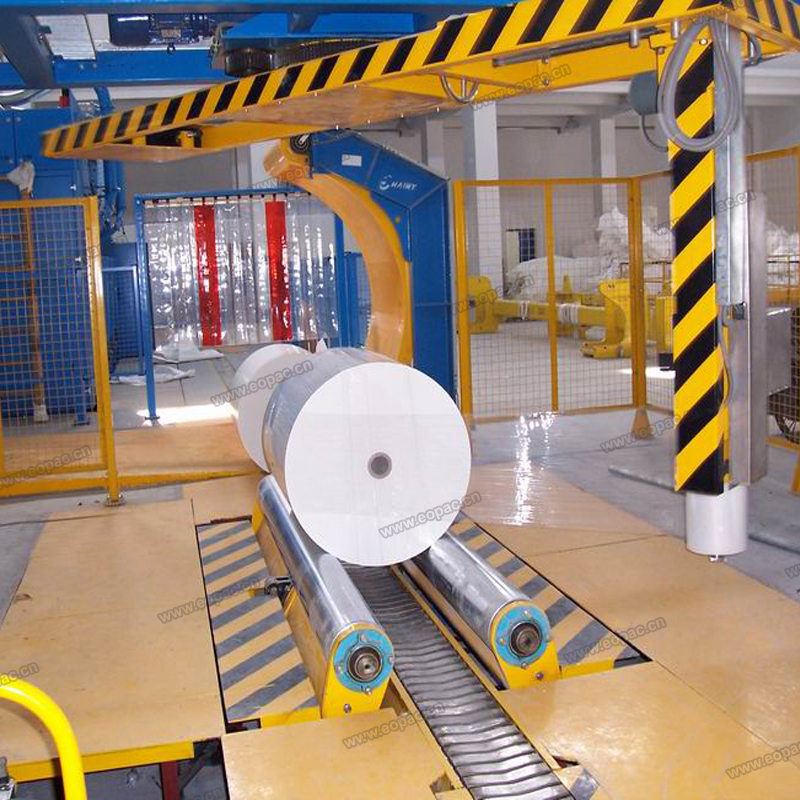

    Combined with V-Slat Conveyor and lift rolls, realize the rolls automatically transport and packing. The cutting and clamping unit provide a fully automatic wrapping cycle.


    Eopac's Inline Rotary Arm Wrapper Advantage

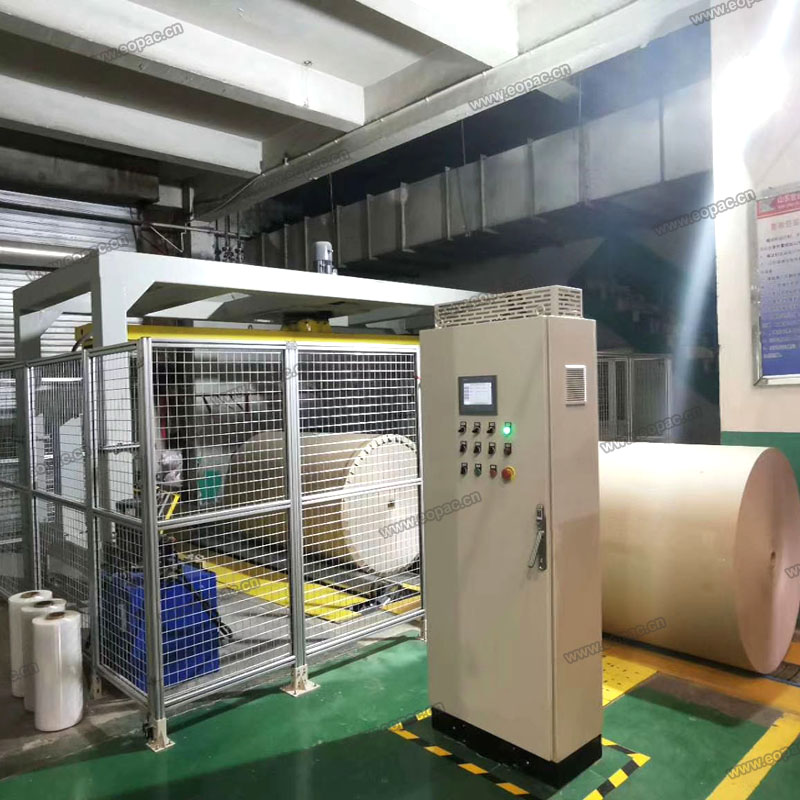

    1. Siemens advanced PLC controller & 7'' colorful touch screen allows easy to operate.

    2. Heavy duty design and famous brand parts ensure long life and minimum maintenance.

    3. World-famous parts ensure high quality of the whole line.


    Size of The   Loads ( Pallets)  to be Wrapped

    Min paper roll size

    600mm (Dia.) X 600mm (Width)

    Max paper roll size

    1800mm (Dia) X 2000mm (Width)


    2000kgs

    Film Delivery   System

    Carriage

    Power pre-stretch Film Delivery System, stretch ratio up to 300%.
      Help you save Packing cost= Save money!!
      Carriage door opens for effortless roll change and thread film
      Film tension adjustable

    Machine Performance

    Packing efficiency

    50-60 rolls/hour

    Load height sensing by photocell

    YES

    Wrap arm soft start & stop

    YES

    Wrap arm rotation speed:

    3-35 rpm adjustable

    Wrap arm Zone
           ( rotating inner diameter)

    2300mm

    Wrap arm drive

    Slew bearing drive

    Wrap Arm drive

    SEW motor

    Carriage Up/down Speed

    Adjustable

    Electrical Features

    Power supply voltage

    380 V 3 Phase - 50/60 Hz

    Power

    2.5Kw

    Machine weight & size

    Machine size

    4050mm (L)x2000mm (W)x2500mm (H)

    Approximate Machine net weight

    1200kg (not include paper roll lifter   unit)

    Roller Unit

    Roller length

    1800mm

    Roller diameter

    200mm

    Roller center distance

    450mm

    Stretch Film Roll   detail

    Film Max. external diameter (D):

    230 mm

    Internal diameter (d):

    76 mm

    Film width:

    500 mm (20'')

    Film thickness:

    17-35 µm


    Looking for ideal End-of-line Solutions Automatic Rotate Arm Wrapper Manufacturer & supplier ?  We are China Origin Factory of High Speed Rotary Arm Wrapping Machine.

    We also make Chain Conveyor , Roller Conveyor , Pallet Rotating Turntable, Pallet Pop-Up Transfer, Pallet Lifting Device etc to complete the whole line.

    Looking for the suitable end-of-line solution?

    Contact us soon. And our experienced technicians will design the end- of -solutions based on your applications.


Request a Quote
Product Name: High Speed Fully Automatic Rotary Arm Wrapper
