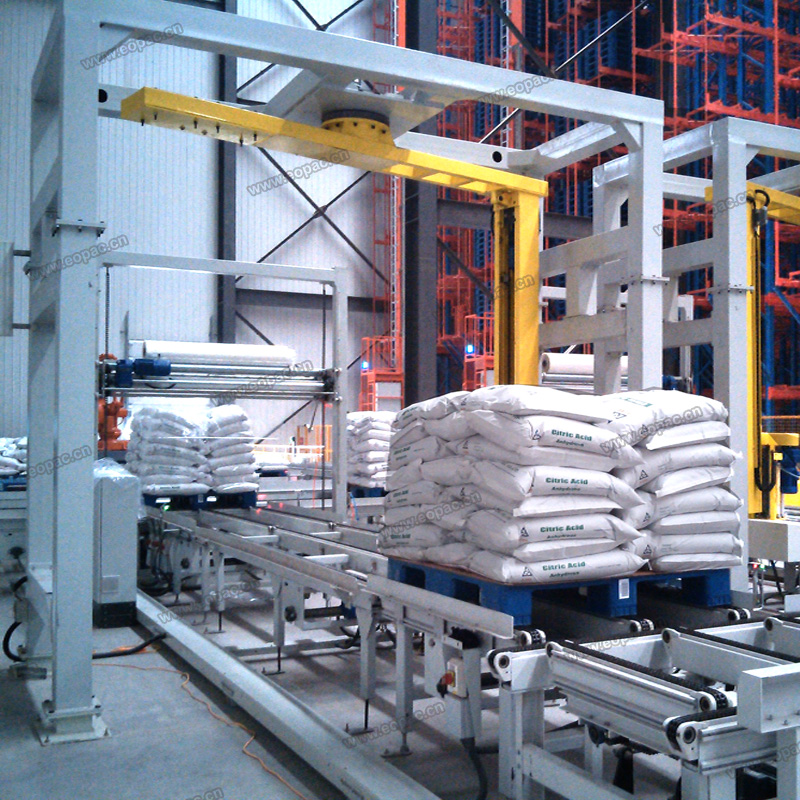

Online Rotary Arm Stretch Wrapper

High Speed Fully Automatic Rotary Arm Stretch Wrapping Machine, Arm max speed up to 25rpm, improve the packing efficiency. Unmanned Operation. 25rpm Arm Stretch Wrapper can connect with your current robot ( or we provide the robot), and combine with all kinds of conveyors to realize pallet travel, and pallet packing automatically. Siemens Advanced Control system and world-famous parts ensure high quality of the whole line.


Product Details

    Eopac's Inline Rotary Arm Wrapper Advantage:

    1. Siemens advanced PLC controller & 7'' colorful touch screen allows easy to operate.

    2. Automatic cut & welding film unit, welding (seal) the film tail automatically to ensure no film tail comes out.

    3. Heavy duty design and famous brand parts ensure long life and minimum maintenance.

    Size of The Loads (     Pallets)  to be Wrapped

    Min load size

    500mm (L) X 500mm   (W)

    Max load size

    1200mm (L) X 1300mm (W)

    Max load height

    1800mm       (Option:   2400mm,2800mm)

    Max load weight

    2000kgs     (depend on   conveyor weight   capacity)

    Machine Performance

    Packing efficiency

    20-40 loads/hour

    Wrap arm soft   start & stop


    Wrap arm   rotation speed:

    3-25 rpm adjustable  Option: 15rpm, 35rpm

    Rotating arm inner   diameter

    2180mm (86'')

    Wrap arm drive

    Slew bearing   drive

    Wrap Arm Safety   Stop

    Rotary arm stop by safety  PE   sensing any obstacle   in the rotating area.

    Carriage Up/down   Speed


    Film Delivery System


    1.       Power pre-stretch Film Delivery   System, stretch   ratio up to 250%.
        Help you save Packing cost= Save money!!

    2.       Film tension adjustable

    3.       Carriage door opens for effortless roll change and thread film

    Electrical Features

    Power supply voltage

    380 V 3Phase –   50/60 Hz



    Rotation Arm motor: 1.5kw

    Film feed motor : 0.37kw

    Carriage lift motor: 0.55kw


    Machine Weight & Size

    Machine size   (LXWXH)

    4050mm X1800mm X3100mm

    Machine weight

    N.W.  1000KG       G.W.1100KG

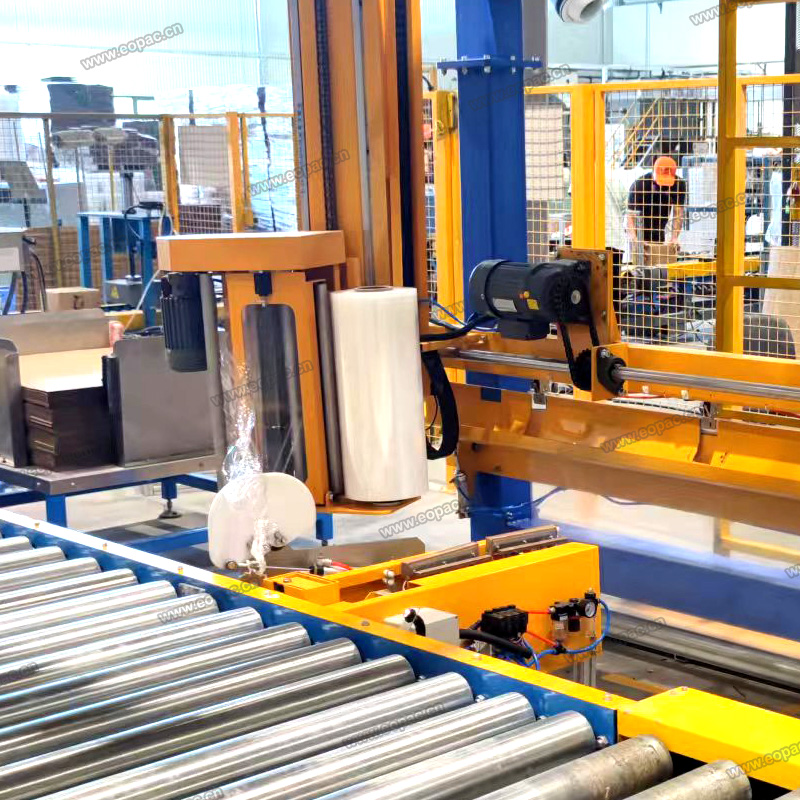

    Film cut & welding unit


    Yes (Hot wire cutter)

    Film tail welding   unit:

    Yes ( Pneumatic control)

    Welding (seal) the film tail, ensure no film tail comes out

    Film tail clamp   unit:

    Yes ( Pneumatic control)

    Options available to custom build to meet specific needs


    Increase the stretch wrapper wrap heights for your loads:2400mm 2800mm

    2. Top Platen

    Add top platen to protect the unstable products during wrapping

    Looking for ideal End-of-line Solutions Automatic Rotate Arm Wrapper Manufacturer & supplier ?  We are China Origin Factory of High Speed Rotary Arm Wrapping Machine.

    We also make Chain Conveyor , Roller Conveyor , Pallet Rotating Turntable, Pallet Pop-Up Transfer, Pallet Lifting Device etc to complete the whole line.

    Looking for the suitable end-of-line solution?

    Contact us soon. And our experienced technicians will design the end- of -solutions based on your applications.
