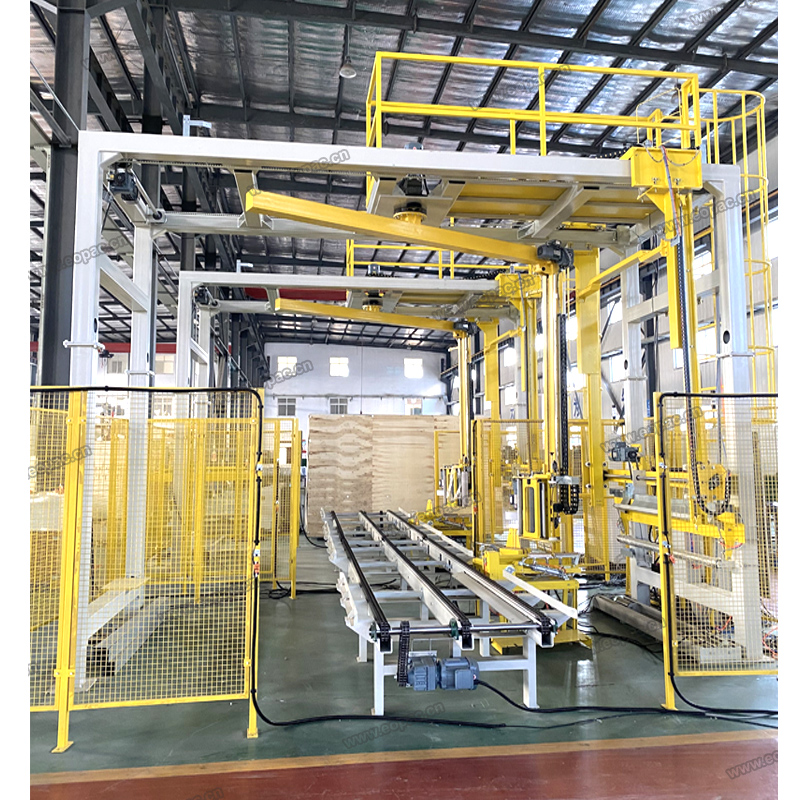

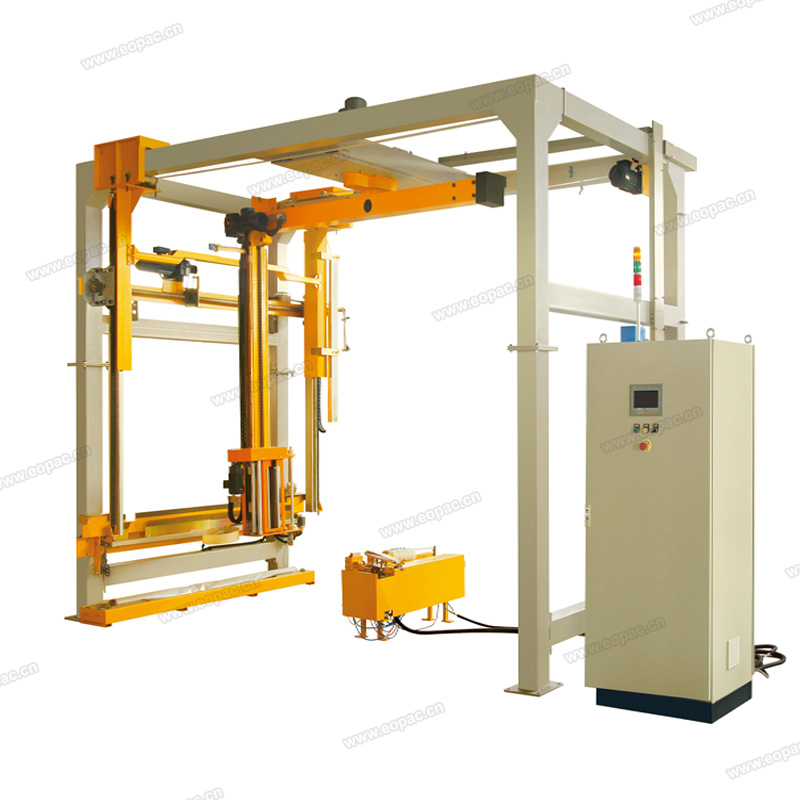

Fully Automatic Rotary Arm Stretch Wrapper integrated with Top Sheet Dispenser, can connect with your current robot ( or we provide the robot), and combine with all kinds of conveyors to realize pallet travel, and pallet packing automatically.
Eopac's Inline Rotary Arm Wrapper Advantage：
1. Siemens advanced PLC controller & 7'' colorful touch screen allows easy to operate.
2. Automatic cut & welding film unit, welding (seal) the film tail automatically to ensure no film tail comes out.
3. Heavy duty design and famous brand parts ensure long life and minimum maintenance.
4. World-famous parts ensure high quality of the whole line.
5. Operating costs and maintenance cost low, automatic operation, can realize unmanned management operations.
Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 500mm (L) X 500mm (W) |
Max load size | 1200mm (L) X 1300mm (W) |
Max load height | 1800mm (Option: 2400mm,2800mm) |
Max load weight | 2000kgs (depend on conveyor weight capacity) |
Machine Performance | |
Packing efficiency | 20-40 loads/hour |
Wrap arm soft start & stop | YES |
Wrap arm rotation speed: | 3-15 rpm adjustable （ Option: 25rpm） |
Rotating arm inner diameter | 2180mm (86'') |
Wrap arm drive | Slew bearing drive |
Wrap Arm Safety Stop | Rotary arm stop by safety PE sensing any obstacle in the rotating area. |
Carriage Up/down Speed | Adjustable |
Film Delivery System | |

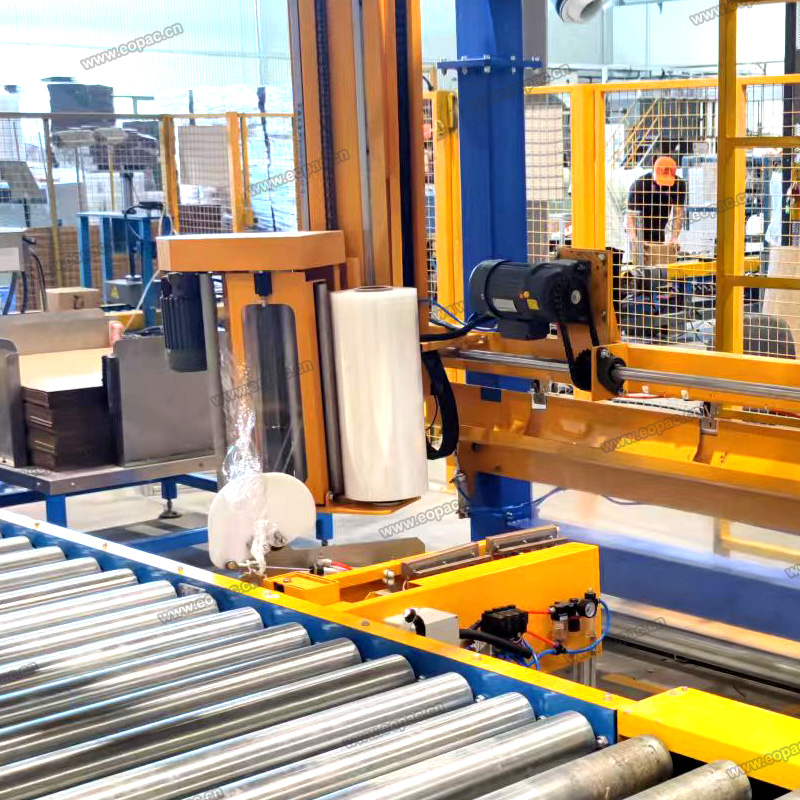

Carriage | 1. Power pre-stretch Film Delivery System, stretch ratio up to 250%. 2. Film tension adjustable 3. Carriage door opens for effortless roll change and thread film |
Electrical Features | |
Power supply voltage | 380 V 3Phase – 50/60 Hz |
Power | 2.5Kw Rotation Arm motor: 1.1kw Film feed motor : 0.37kw Carriage lift motor: 0.37kw Top sheet dispenser lift motor: 1.1kw Top sheet film-drawing motor:0.37kw
|
Machine Weight & Size | |
Machine size (LXWXH) | 4050mm X1800mm X3100mm |
Machine weight | N.W. 1000KG G.W.1100KG |
Film cut & welding unit | |
Cutter: | Yes (Hot wire cutter) |
Film tail welding unit: | Yes ( Pneumatic control) Welding (seal) the film tail, ensure no film tail comes out |
Film tail clamp unit: | Yes ( Pneumatic control) |
The end-of-line solution will be tailor make according your application.
We also make Chain Conveyor , Roller Conveyor , Pallet Rotating Turntable, Pallet Pop-Up Transfer, Pallet Lifting Device etc to complete the whole line.
Looking for the suitable end-of-line solution? Contact us soon.
And our experienced technicians will design the end- of -solutions based on your applications.
