EOPAC Stretch Wrapping Machines are able to wrap the pallet bottom and lock the product on the pallets. Provide enough containment force for the pallet load. Ensure your loads are properly wrapped and safely shipped.
ET300PS is easy to operation. Simply attach stretch film to the pallet and press the “Auto-start” button, the pallet is wrapped automatically. Only need the operator cut the film and remove the pallet.
Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 500mm (L) X 500mm (W) |
Max load size | 1200mm (L) X 1200mm (W) |
Max load height | 2400mm(94'') (Option: 2800mm, 3000mm) |
Max load weight | 2000kg (4400lbs) (Option: 2500kgs, 3000kgs) |
Machine Performance | |
Packing efficiency | 20-30 loads/hour |
Load height sensing by PEl | YES |
Turntable soft start & stop | YES |
Turntable rotation speed: | 3-12 rpm adjustable |
Turntable diameter | 1650mm (Option: 1800mm, 2000mm,2200mm, 2400mm) |
Turntable height | 78mm |
Move machine with forklift | Front & Rear |
Carriage Up/down Speed | Adjustable |
Film Delivery System | |

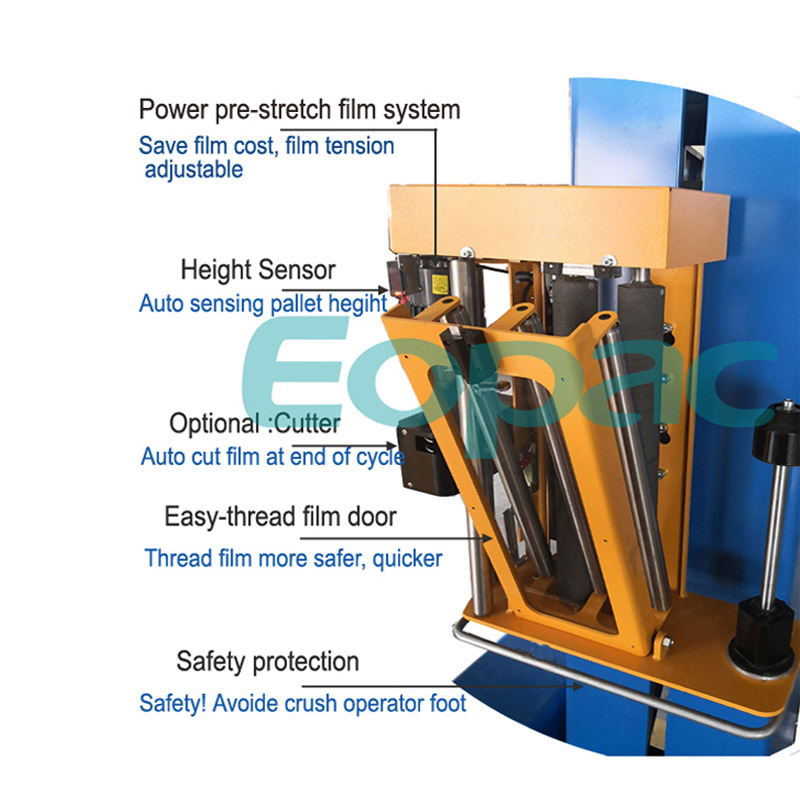

Carriage | 1.Power pre-stretch Film Delivery System, stretch ratio up to 300%. 2.Carriage door opens for effortless roll change and thread film 3.Film tension adjustable |
Electrical Features | |
Power supply voltage | 220 V 1Phase – 50/60 Hz |
Power | 1.5Kw |
Machine Weight & Size | |
Machine size | 2675mmX1650mmX2860mm (H) (105'' L X 65''W X 112'H') |
Machine weight | N.W. 650KG G.W.750KG |
Stretch Film Roll detail | |
Film Max. external diameter (D): | 250 mm |
Internal diameter (d): | 76 mm |
Film width & thickness | Width=500 mm (20’’); Thickness=15-35 µm |
Options available to custom build to meet specific needs
1.RAMP
Lets operator easy to place the load on the turntable of stretch wrapping machine with a pallet jack.
2.AUTO FILM CUT-OFF
Cut film tail automatic after stretch wrapping cycle finished, save operator time
3. TOP PLATEN
Add mortorised top platen to protect the unstable products during stretch wrapping
We provides a wide selection top quality semi-auto pallet wrappers, Stretch Wrapper, pallet packing machine. Contact us soon.
