Advantage:
1. The Cut &grab unit will cut the film and wipe the film tail against the load after wrapping. Improve packing efficiency.
2. Remote Control starts the machine, not needing the forktruck driver to get off the fork truck.
3. Covering the top surface of the pallet for protection against dust & moisture.
4. Save 30%-50% on packing cost. Reduce labor.
Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 500mm (L) X 500mm (W) |
Max load size | 1200mm (L) X 1100mm (W) |
Max load height | 1800mm(94'') (Option: 2400mm,2800mm) |
Max load weight | 2000kg (4400lbs) (Option: 2500kgs, 3000kgs) |
Machine Performance | |
Packing efficiency | 30-40 loads/hour |
Load height sensing by PE | YES |
Turntable soft start & stop | YES |
Turntable rotation speed: | 3-12 rpm adjustable |
Turntable diameter | 1650mm |
Turntable height | 85mm |
Move the machine with forklift | Front & Rear |
Carriage Up/down Speed | Adjustable |
Film Delivery System | |

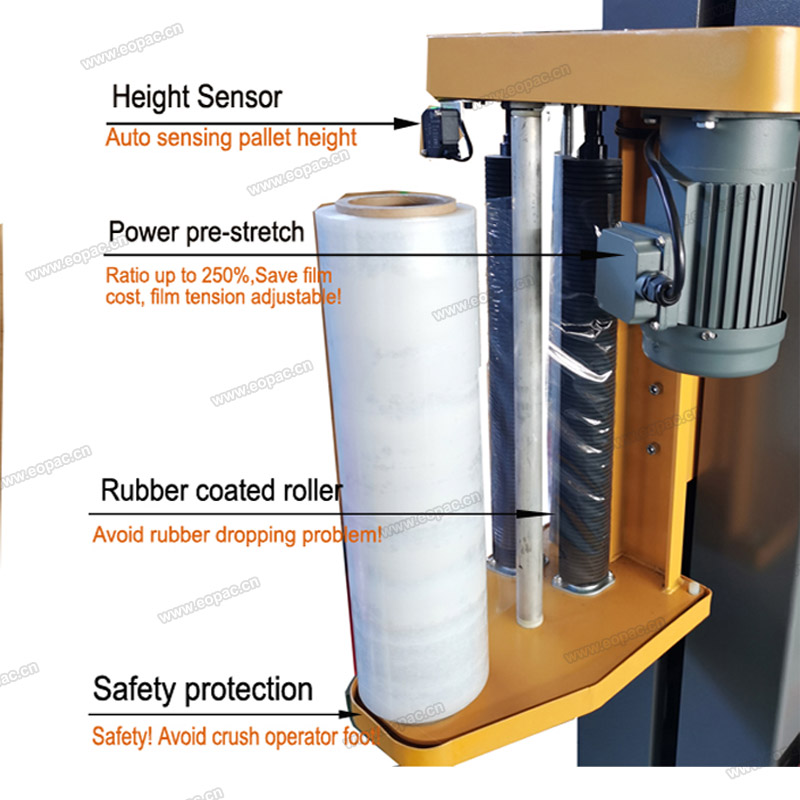

Carriage | 1. Power pre-stretch Film Delivery System, stretch ratio up to 250%. 2. Film tension adjustable |
Film Automatic Clamp & Cut unit | |
Cutter | Yes (Hot wire cutter) |
Film tail wipe unit | Yes ( Pneumatic control) |
Film tail clamp unit | Yes ( Pneumatic control) |
Pneumatic System | 0.6-0.8Mpa 1000ml/min |
Electrical Features | |
Power supply voltage | 220 V 1Phase – 50/60 Hz |
Power | 2.65Kw |
Machine Weight & Size | |
Machine size (LXWXH) | 3100mm X2350mm X2500mm |
Machine weight | N.W. 1000KG G.W.1100KG |

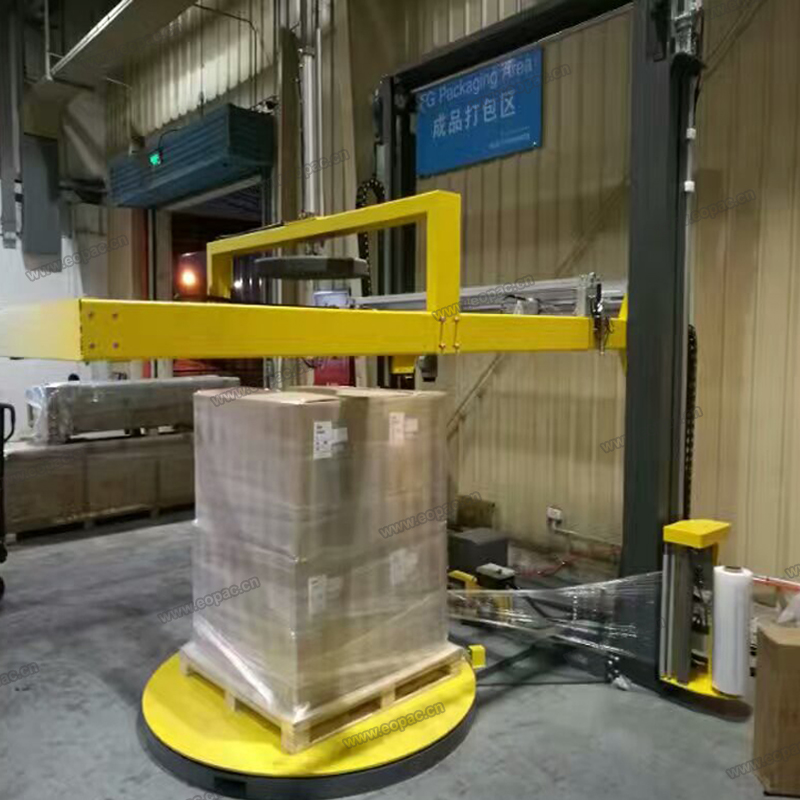

Top Sheet Film Dispenser Unit | |
Film Max. external diameter (D): | 250 mm |
Internal diameter (d): | 76 mm |
Film width & thickness | Width=1800 mm (max); Thickness=20-50 µm |
Film cut unit | Yes (Pneumatic control) |
Film drag unit, Film lift unit | Speed adjustable |
Eopac offers a comprehensive range of pallet wraps to guarantee that your cargoes (pallets) are securely wrapped and sent, minimizing supply chain shipping damage.
90% of pallet sizes are compatible with our conventional pallet wrapping machine. Additionally, we can manufacture to your unique pallet size.
