Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 500mm (L) X 500mm (W) |
Max load size | 1200mm (L) X 1100mm (W) |
Max load weight | 800kgs |
Machine Performance | |
Packing efficiency | 20-30 loads/hour |
Load height sensing by PE | YES |
Turntable soft start & stop | YES |
Turntable diameter | 1650mm |
Turntable height | 86mm |
Move the machine with forklift | Front & Rear |
Carriage Up/down Speed | Adjustable |
Film Delivery System | |

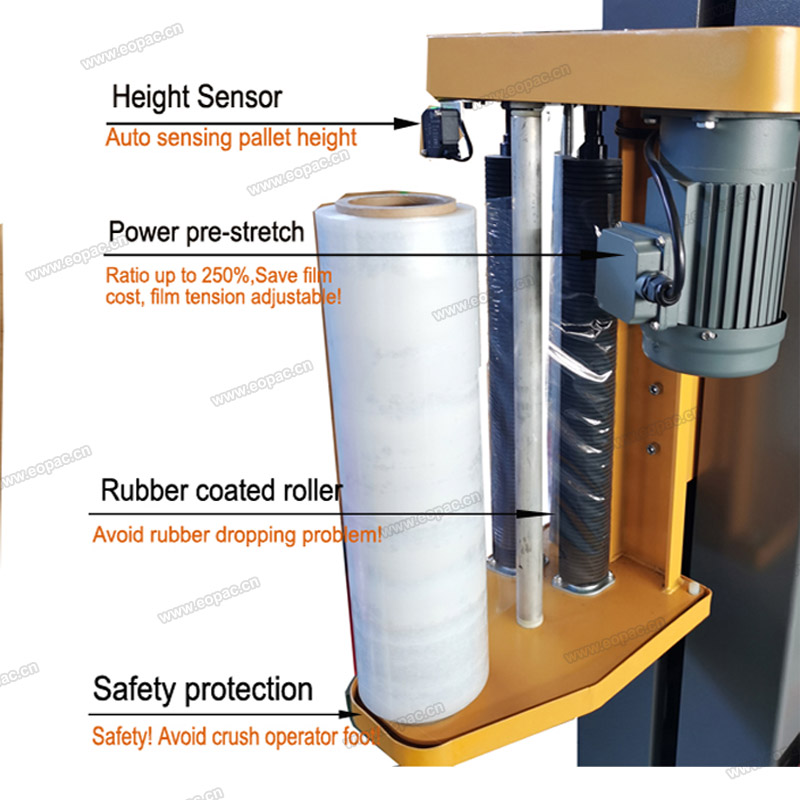

Carriage | 1. Power pre-stretch Film Delivery System, stretch ratio up to 250%. 2. Film tension adjustable 3. Carriage door opens for effortless roll change and thread film |
Turntable drive | |
Turntable rotation speed: | 3-12 rpm adjustable |
Turntable drive | Heavy-duty chain drive |
Electrical Features | |
Power supply voltage | 220 V 1Phase – 50/60 Hz |
Power | 1.5Kw |
Machine Weight & Size | |
Machine size (LXWXH) | 2925mm X1650mm X2800mm |
Machine weight | N.W. 1000KG G.W.1100KG |
Options available to custom build to meet specific needs
1. AUTO FILM CUT-OFF
Cut film tail automatic after stretch wrapping cycle finished, save operator time
2. TOP PLATEN
Add mortorised top platen to protect the unstable products during stretch wrapping
3. BIGGER TURNTABLE DIAMETER
Increase length and width of your loads: 1800mm; 2000mm
4. EXTEND PACKING HEIGHT
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm
We are specialized manufacturers from China, Pallet Wrapper, Pallet Wrap suppliers/factory, wholesale high-quality products of Pallet Wrapping Machine R & D and manufacturing.
We have the perfect after-sales service and technical support.
Are you looking for top quality,reliable and cheaper pallet wrapper ? Contact Us Soon !
