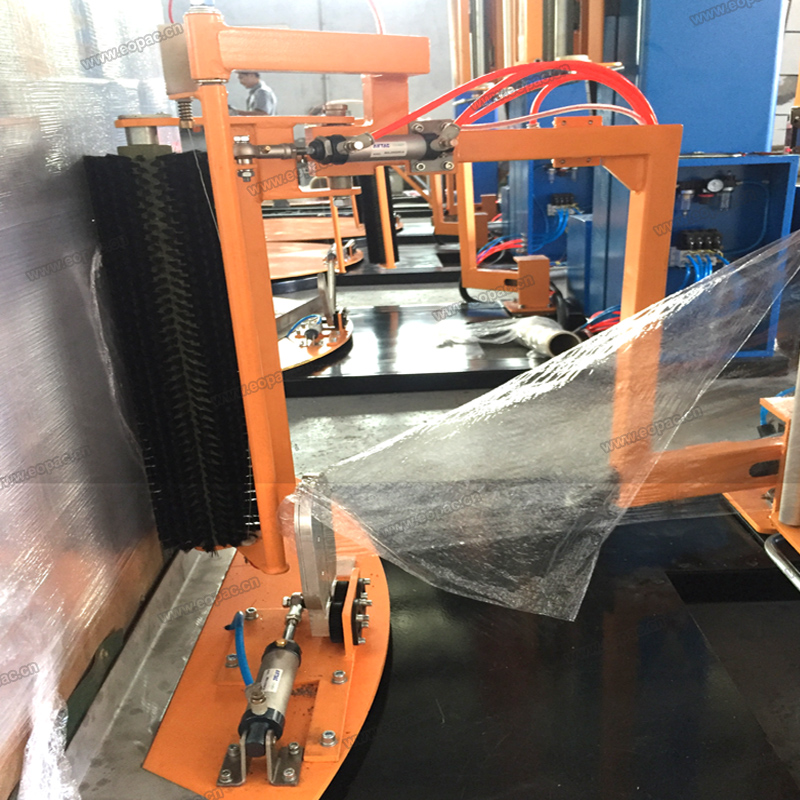

EAT300PPS has a cut&grab film unit that will cut the film and wipe the film tail against the pallet.

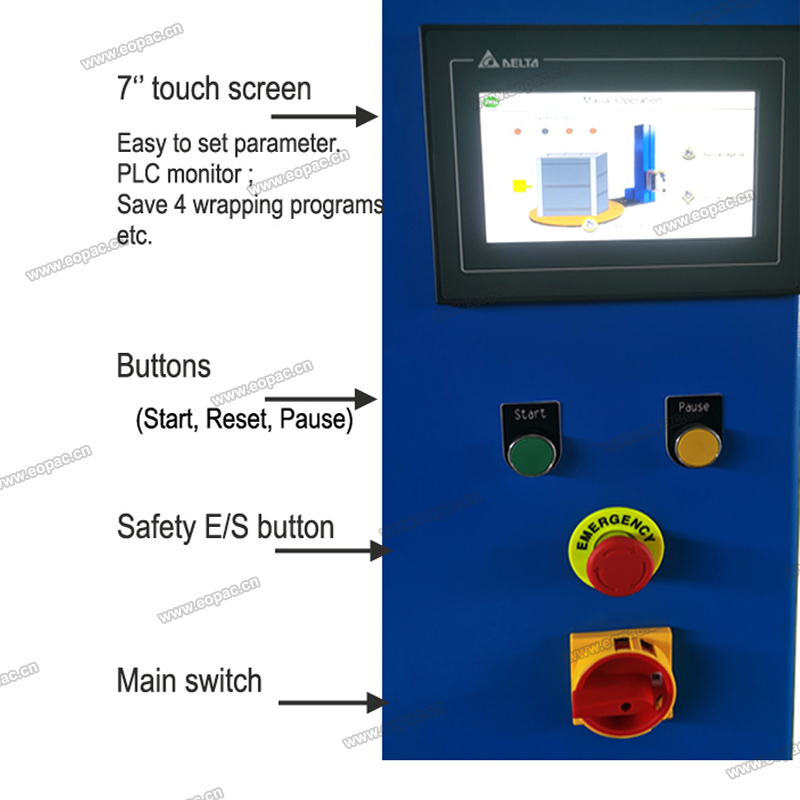

7’’ touch screen allows simple operation. Heavy-duty design ensures long life and minimum maintenance.
Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 500mm (L) X 500mm (W) |
Max load size | 1200mm (L) X 1200mm (W) |
Max load height | 2400mm(94'') (Option: 2800mm, 3000mm) |
Max load weight | 2000kg (4400lbs) (Option: 2500kgs, 3000kgs) |
Machine Performance | |
Packing efficiency | 30-40 loads/hour |
Load height sensing by PE | YES |
Turntable soft start & stop | YES |
Turntable rotation speed: | 3-12 rpm adjustable |
Turntable diameter | 1650mm (Option: 1800mm, 2000mm,2200mm, 2400mm) |
Turntable height | 85mm |
Move the machine with forklift | Front & Rear |
Carriage Up/down Speed | Adjustable |
Film Delivery System | |

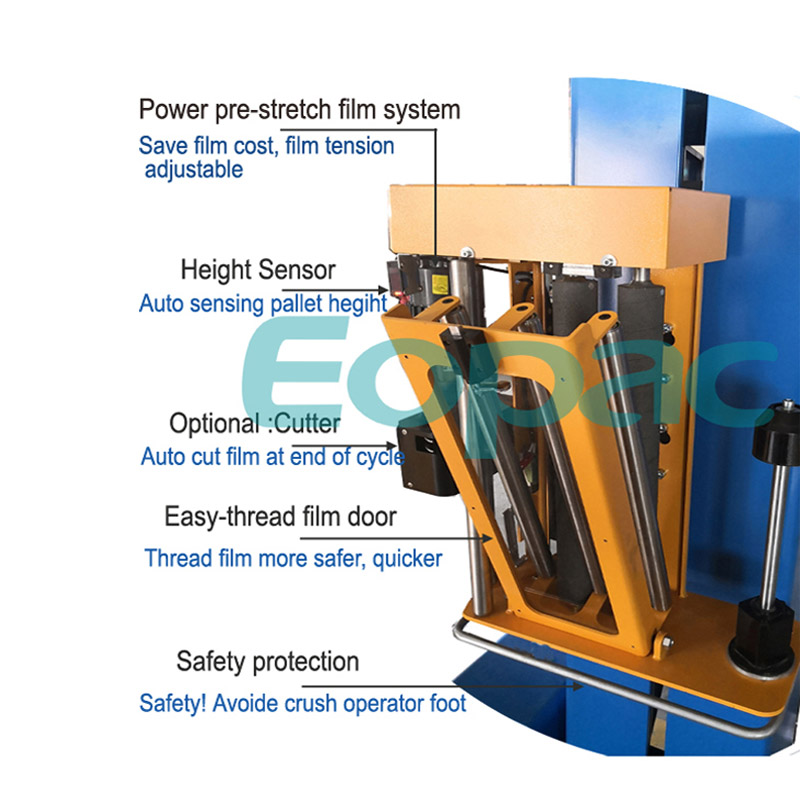

Carriage | 1. Power pre-stretch Film Delivery System, stretch ratio up to 250%. 2. Film tension adjustable 3. Carriage door opens for effortless roll change and thread film |
Film Automatic Clamp & Cut unit | |
Cutter | Yes (Hot wire cutter) |
Film tail wipe unit | Yes ( Pneumatic control) |
Film tail clamp unit | Yes ( Pneumatic control) |
Pneumatic System | 0.6-0.8Mpa 1000ml/min |
Electrical Features | |
Power supply voltage | 220 V 1Phase – 50/60 Hz |
Power | 1.5Kw |
Machine Weight & Size | |
Machine size (LXWXH) | 2675mm X1650mm X2860mm |
Machine weight | N.W. 800KG G.W.900KG |
Options available to custom build to meet specific needs
1.BIGGER TURNTABLE DIAMETER
Increase length and width of your loads: 1800mm; 2000mm
2.WEIGHT CAPACITY
Increase weight capacity for heavy loads (2500kgs, 3000kgs);
3.EXTEND PACKING HEIGHT
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm
Our stretch wrapping equipment guarantees that your loads (pallets) are securely packaged and sent, minimizing supply chain shipping damage.
Eopac offers a comprehensive range of pallet wraps to guarantee that your cargoes (pallets) are securely wrapped and sent, minimizing supply chain shipping damage. 90% of pallet sizes are compatible with our conventional pallet wrapping machine. Additionally, we can manufacture to your unique pallet size.
Are you looking for a source of pallet wrappers? Contact us now!
