Economic Pallet Wrapping Machine

Economic Pallet Wrapper Advantage: Low investment; Min film consumption (save film cost); Easy to installation; Min maintenance.

Share:
Brochure

Product Details

    ET200SPS has an advanced PLC controller and 7'' touch screen, which is easy to operate.

    Press the "start" button, and this Pallet Wrapper will run according to the parameters set. With a power pre-stretch film delivery system, this model helps you reduce film costs.

    Our Pallet Packing Machine / Stretch Wrapper ensure your pallets are packed properly, reduces the damage during shipment.

    Size of The Loads (   Pallets)  to be Wrapped

    Min load size

    500mm (L) X 500mm (W)

    Max load size

    1200mm (L) X 1200mm (W)

    Max load height

    2400mm(94'')       (Option: 2800mm, 3000mm)

    Max load weight

    2000kg (4400lbs)    (Option: 2500kgs, 3000kgs)

    Machine Performance

    Packing efficiency

    20-30 loads/hour

    Load height sensing by PE

    YES

    Turntable soft start & stop

    YES

    Turntable rotation speed:

    3-12 rpm adjustable

    Turntable diameter

    1650mm   (Option: 1800mm,   2000mm,2200mm, 2400mm)

    Turntable height

    78mm

    Move the machine with forklift

    Front & Rear

    Carriage Up/down Speed

    Adjustable

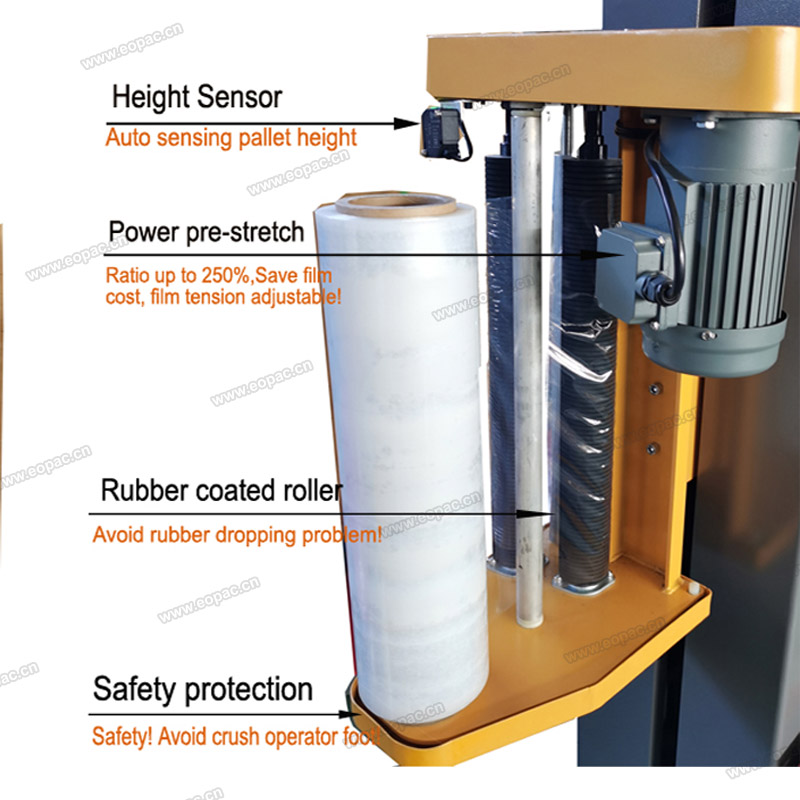

    Film Delivery System

    Carriage

    l  Power pre-stretch Film Delivery System, stretch ratio up to 250%.
      Help you save Packing cost= Save money!!

    l  Film tension adjustable

    Electrical Features

    Power supply voltage

    220 V 1Phase – 50/60 Hz

    Power

    1.5Kw

    Machine Weight & Size

    Machine size (LXWXH)

    2575mm X1650mm X2760mm      (105'' L X 65''W X 112'H')

    Machine weight

    N.W.  550KG   G.W.650KG

    Stretch Film Roll detail

    Film Max. external diameter (D):

    250 mm

    Internal diameter (d):

    76 mm

    Film width & thickness

    Width=500 mm (20’’); Thickness=15-35 µm


    Options available to custom build to meet specific needs

    1.Ramp:

    Easy to place the load on the turntable of stretch wrapping machine with a pallet jack.


    2.Weight Integrated Scale (Pallet Wrapper with Scale)

    Weight and wrap loads at the same time, printer which print the label is also optional,


    3.Motorized Top Platen ( Pallet Wrapper with Top Platen)

    Add motorized top platen to protect the unstable products during stretch wrapping





    Looking for ideal Stretch Film Pallet Wrap Machine Manufacturer & supplier ?

    We have a wide selection at great prices to help you get creative. All the Pallet Stretch Wrapper Machine Price are quality guaranteed.

    We are China Origin Factory of Stretch Film Wrapping Machine. If you have any question, please feel free to contact us.

Request a Quote
Product Name: Economic Pallet Wrapping Machine
