ET300PPS Pallet Wrapping Machine

ET300PPS Pallet Wrapping Machine

  • Specification
  • Options
  • Application
  • Video
    Size of The Loads ( Pallets) to be Wrapped
    Min load size500mm (L) X 500mm (W)
    Max load size1200mm (L) X 1200mm (W)
    Max load size diagonal (Recommend)1800mm (70'')
    Max load height2400mm (94'')       (Option: 2800mm, 3000mm)
    Max load weight2000kgs (4400lbs)    (Option: 2500kgs, 3000kgs)

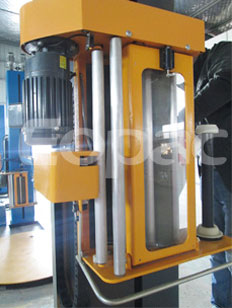

    Film Delivery System
    CarriagePower pre-stretch Film Delivery System, stretch ratio up to 300%.
    Help you save Packing cost= Save money!!
    Carriage door opens for effortless roll change and thread film
    Film tension adjustable
    Machine Performance
    Packing efficiency20-40 loads / hour
    Load height sensing by photocellYES
    Turntable soft start & stopYES
    Turntable rotation speed:3-12 rpm adjustable
    Turntable diameter1650mm (65'')
    Turntable height78mm
    Move machine with forkliftFront & Rear
    Carriage Up/down SpeedAdjustable
    Electrical Features
    Power supply voltage220 V 1 Phase - 50/60 Hz
    Power1.5Kw
    Machine weight & size
    Machine size2675mm (L)
    1650mm (W)
    2860mm (H)   (105'' L X 65''W X 112'H')
    Approximate Machine net weight650kg
    Stretch Film Roll detail
    Film Max. external diameter (D):230 mm
    Internal diameter (d):76 mm
    Film width:500 mm (20'')
    Film thickness:17-35 µm


    ET300PPS Pallet Wrapping Machine

    RAMP

    Lets operator easy to place the load on the turntable of stretch wrapping machine with a pallet jack.



    ET300PPS Pallet Wrapping Machine

    AUTO FILM CUT-OFF

    Cut film tail automatic after stretch wrapping cycle finished, save operator time



    ET300PPS Pallet Wrapping Machine

    WEIGHT INTERGRATED SCALE

    Weight and wrap loads at the same time, printer which print the label is also optional,



    ET300PPS Pallet Wrapping Machine

    MOTORISED TOP PLATEN

    Add mortorised top platen to protect the unstable products during stretch wrapping



    BIGGER TURNTABLE DIAMETER

    Increase length and width of your loads: 1800mm; 2000mm



    WEIGHT CAPACITY

    Increase weight capacity for heavy loads (2500kgs, 3000kgs);



    EXTEND PACKING HEIGHT

    Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm

    ET300PPS Pallet Wrapping Machine  ET300PPS Pallet Wrapping Machine  ET300PPS Pallet Wrapping Machine

    ET300PPS Pallet Wrapping Machine  ET300PPS Pallet Wrapping MachineET300PPS Pallet Wrapping Machine
