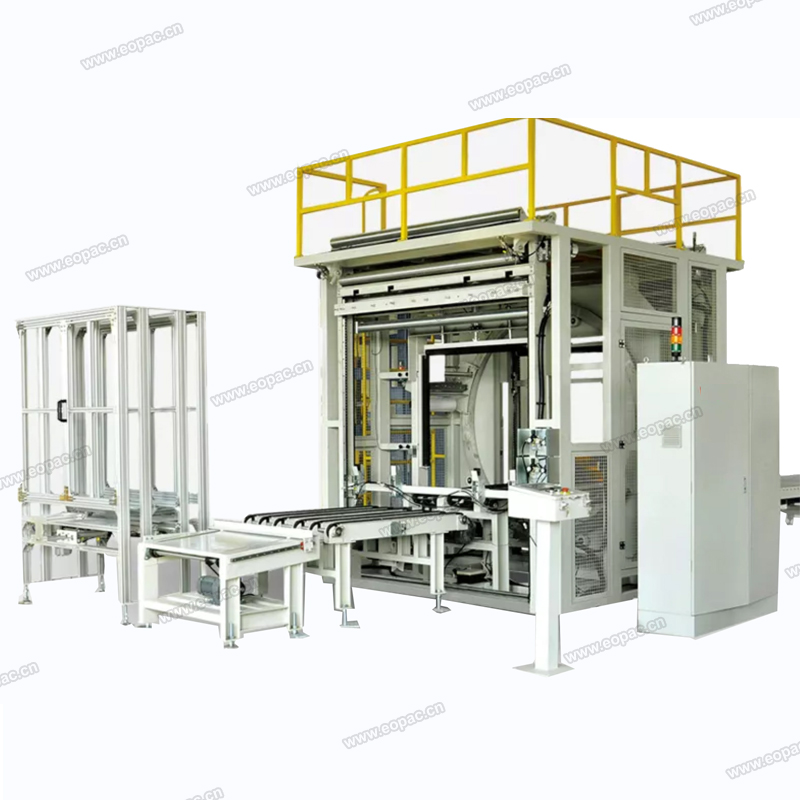

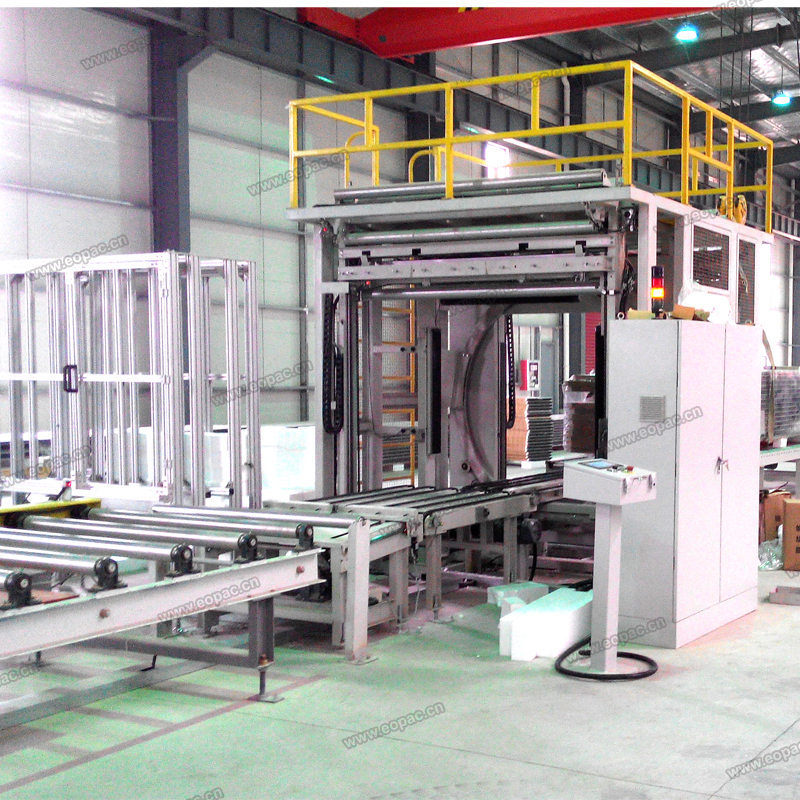

Horizontal Stretch Wrapping Machines combine with the conveyors and realize automatic packing.
The wrapping realize dust-proof, moisture-proof, save 30-50% on packing cost, improve packing efficiency, and reducing shipping damage in the supply chain.
Size of The Loads to be Wrapped | |
Packing efficiency | 4m-10m per min (Based on Film width=500mm) |
Min load diagonal | 600mm |
Max load diagonal | 2000mm |
Max load weight | Depend on conveyor |
Film Delivery System | |
Carriage | Brake film carriage |
Ring Size Drive | |
Ring Inner Dia. | 2200mm |
Ring drive | Belt drive |
Ring rotation speed | 15-25rpm ( adjustable) |
Ring soft start & stop | YES |
Conveyor | Height=800mm (Standard ) |
Other Performance | |
Load position sensing by photocell | YES |
Machine safety stop when door open | YES |
Film Clamp & Cut Unit | |
Cutter | Yes (blade) |
Film tail clamp unit | Yes ( Pneumatic control) |
Pneumatic system (customer supply) | 0.6-0.8Mpa |
Electrical Features | |
Power supply voltage | 380 V 3 Phase - 50/60 Hz |
Power | 4 Kw (Not include conveyor) |
Stretch Film Roll detail | |
Film Max. external diameter (D): | 230 mm |
Internal diameter (d): | 76 mm |
Film width: | 500 mm (20’’) |
Film thickness: | 17-35 µm |
u Advanced & high-resolution Siemens control system.
u Siemens 7’’ touch screen is easy to operate.
u 4 wrapping programs and pass-by are available for the customer to choose.
u Customers can adjust the packing layers according to their handling and transportation needs.
u Automatic packaging for different board sizes without manual operation.
u When stretch wrapping finish, the film will be cut and clamped automatically.
u Optional: Automatic bottom skid feeding. Insert the skid underneath the stack boards. Easy to unload and store the wrapped boards.
u The safety fence is equipped with interlocked system.
