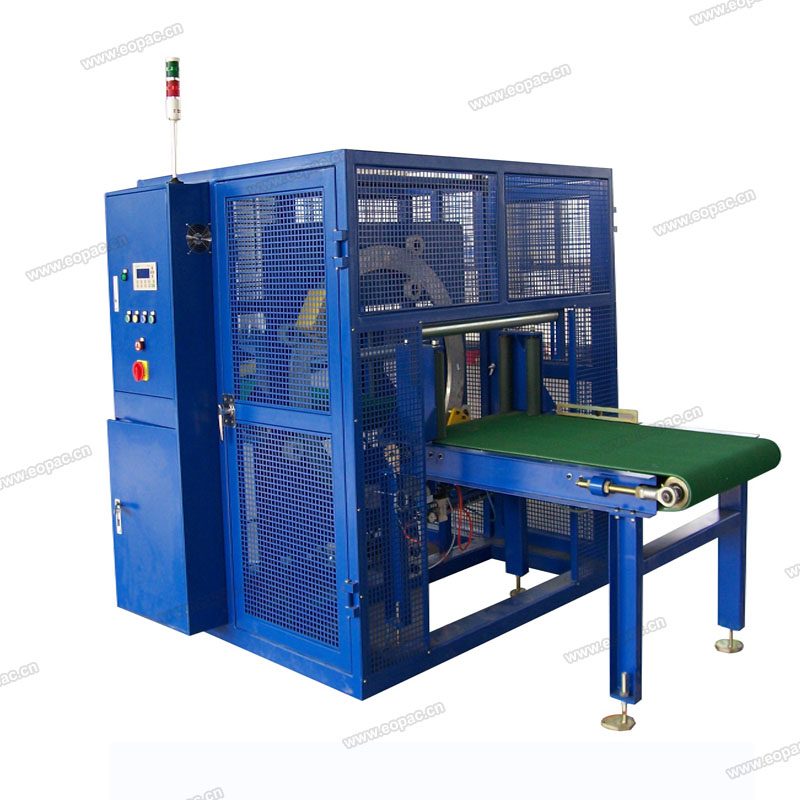

Horizontal Wrapping Machine

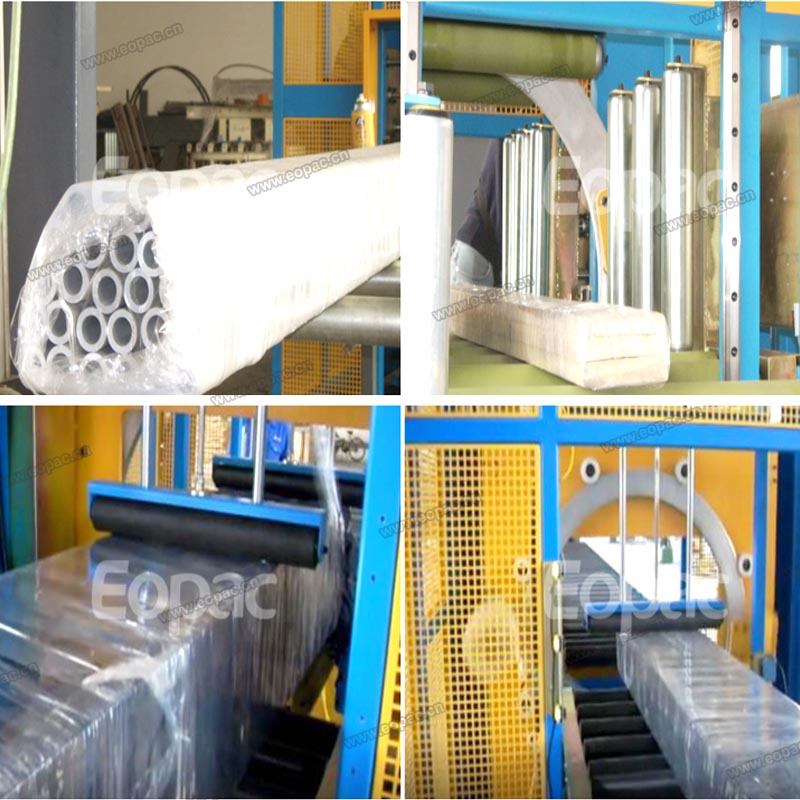

Horizontal orbital stretch wrappers are ideal for wrapping long loads, for example, Panels, plasterboards, sandwich boards, pipes, extruded aluminum and other long loads. The film holds multiple products tightly together to prevent damage caused by vibration during transport.

Share:
Brochure

Product Details

    Horizontal stretch wrappers family includes EH400,EH800, EH1000, EH2000 etc. Ring sizes from 400mm to 2200mm to custom build for horizontally wrapping your loads.

    A number of optional features available (Top press, side press, top Sheet Dispenser, Chain Conveyor , Roller Conveyor etc)


    Horizontal Stretch Wrapping Machines combine with the conveyors and realize automatically packing.

    The stretch film holds multiple products tightly together to prevent damage caused by vibration during transport, preventing dust and protecting the surface of the products.


    Size of The Loads to be Wrapped

    Packing efficiency

    4m-15m per min. (Based on Film width=500mm)

    Min load diagonal

    200mm

    Max load diagonal

    600mm

    Max load weight

    Depend on conveyor

    Film Delivery System

    Carriage

    Brake film carriage
      Film tension adjustable

    Ring Size Drive

    Ring Inner Dia.

    800mm (32’”)

    Ring drive

    Belt drive
      Brake motor=1.1kw

    Ring rotation speed

    15-50rpm ( adjustable)

    Ring soft start & stop

    YES

    Conveyor

    Height=800mm (Standard )
      Conveyor Speed: 12m/min

    Conveyor type: 3 or rows Chain conveyor, roller conveyor, belt conveyor   can be custom build according your application

    Other Performance

    Load position sensing by photocell

    YES

    Machine safety stop when door open

    YES

    Film Automatic Clamp & Cut Unit

    Cutter

    Yes (blade)

    Film tail clamp unit

    Yes ( Pneumatic control)

    Pneumatic system (customer supply)

    0.6-0.8Mpa

    Electrical Features

    Power supply voltage

    380 V 3 Phase -   50/60 Hz

    Power

    1.1 Kw (Not include conveyor)

    Machine weight & size

    Machine size (LXWXH)

    2000mm (L)X 1800mm (W) X2000mm (H)

    Approximate Machine net weight

    1000kg


    Options available to custom build to meet specific needs

    1.PRODUCT STABILIZERS

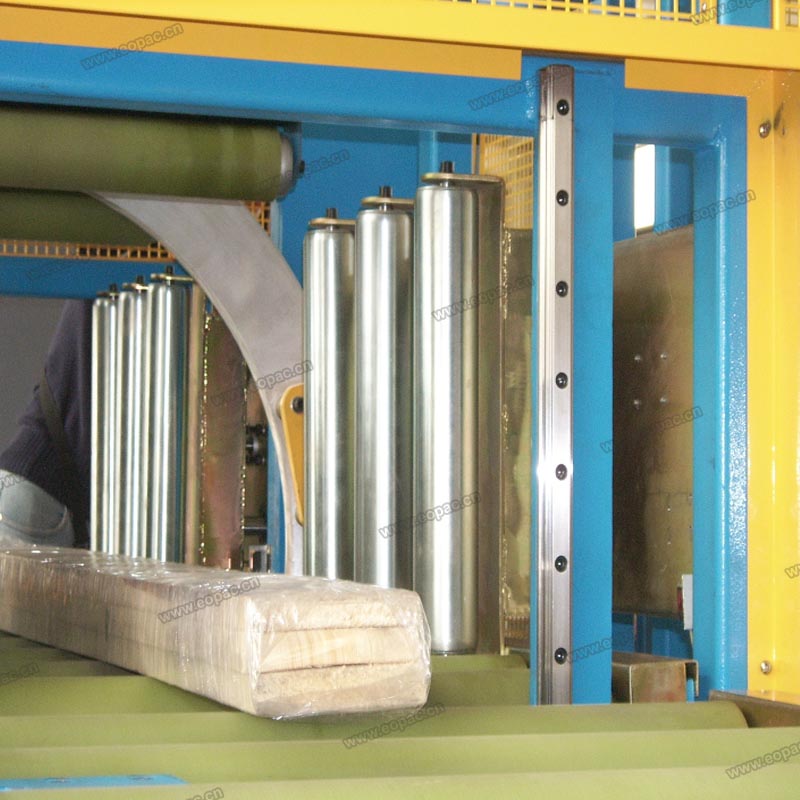

    Stabilizers support top, bottom and side of the product and guide the product guide through the wrap zone during the wrapping process.  Particularly suitable for light and unstable products.


    2.CONVEYOR TYPE

    Chain conveyor, belt conveyor, roller conveyor to custom build according your application




    Looking for the Horizontal Stretch Wrapper?

    Contact us soon. And our experienced technicians will design and make according your product size and workshop layout.
