Boards Packaging Line

Boards Packaging Line

  • Specification
  • Options
  • Application
  • Video

    Wrapping Unit   (EHT2200)

    Size of boards to   be wrapped

    L3000*W1200*H1200mmmax

    Stacked boards   weight:

    2500kgs (max)

    (can be tailor make according your boards size)

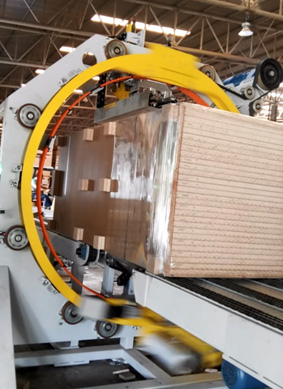

    Horizontal wrapper

                       Inner diameter :


    Φ2200mm

                       Ring speed :

    30rpmadjustable

                       Ring drive motor:

    4kw

    Rotating table

                       Rotation diameter:

    Φ3200mm

                      Table conveyor:

    chain conveyor

                       Conveyor motor:

    3kw

    Table drive:

    Slew bearing drive; Motor: 3kw

    Machine power:

    3P 380V+15%,-10%),50Hz

    Machine size:

    6500mm×2900mm×3000mm (LXWXH)

    Packing efficiency

    20 loads/hour (depend on the load size)



      u  Advanced & high-resolution Siemens control system.

    u  Siemens 7’’ touch screen is easy to operation.

    u  3 wrapping programs and pass by are available for the customer choose.

    u  Customer can adjust the packing layers according to the handling and transportation needs.

    u  Automatic packaging for different boards sizes without manual operation.

    u  When stretch wrapping finish, the film will be cut and clamped automatically.

    u  Optional: Automatic bottom skid feeding. To insert the skid underneath the stack boards. Easy to unload and storage the wrapped boards.

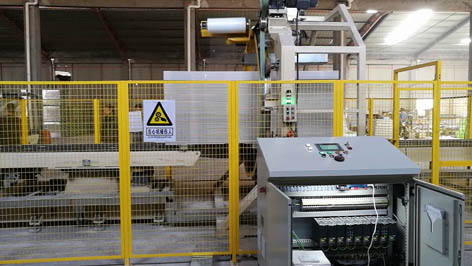

    u  Safety fence is equipped with interlocked system.
