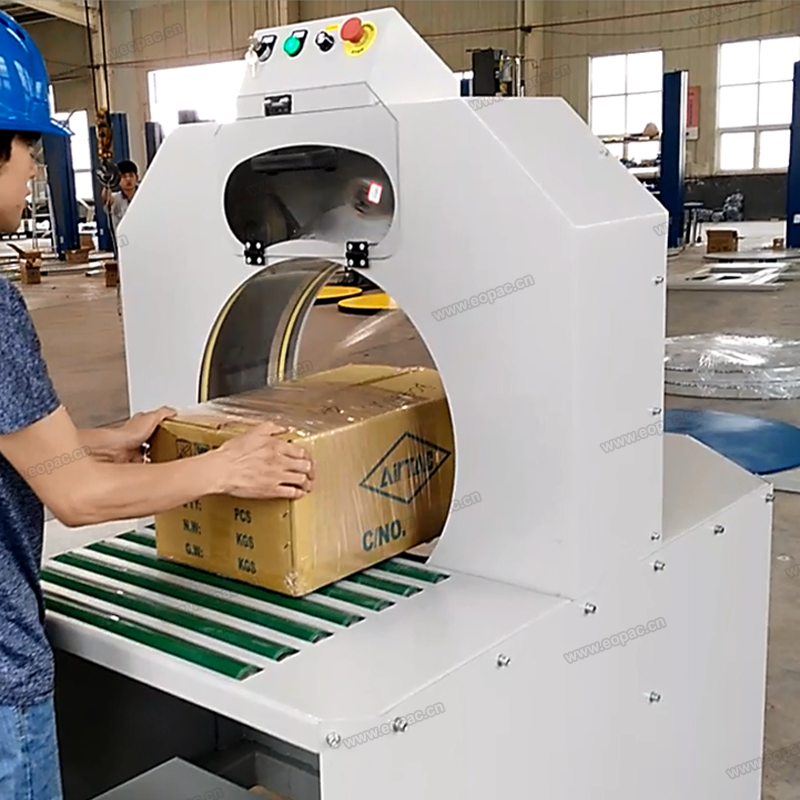

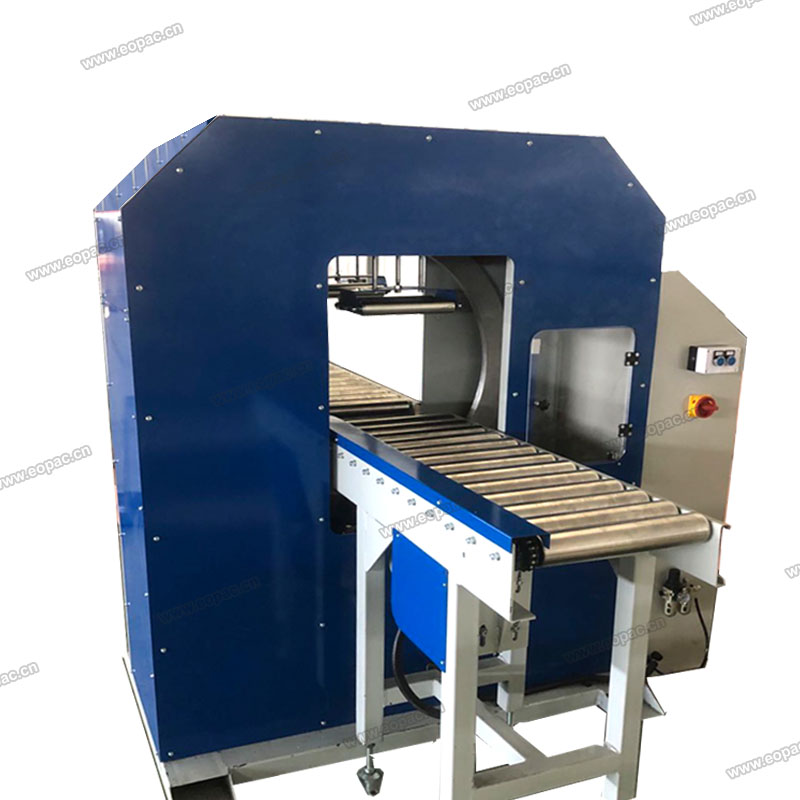

We are professional supplier of Horizontal Stretch Wrapping Machines.
We can design and custom-made the horizontal wrapper according your product size.
The stretch film holds multiple products tightly together to prevent damage caused by vibration during transport, preventing dust and protecting the surface of the products.
Size of The Loads to be Wrapped | |
Packing efficiency | 4m-15m per min. (Based on Film width=200mm) |
Min load diagonal | 200mm |
Max load diagonal | 350mm |
Max load weight | Depend on conveyor |
Film Delivery System | |
Carriage | Brake film carriage, stretch ratio 1:1.5 |
Ring Size Drive | |
Ring Inner Dia. | 500mm |
Ring drive | Belt drive |
Ring rotation speed | 15-80rpm ( adjustable) |
Ring soft start & stop | YES |
Conveyor | Height=800mm (Standard ) Conveyor type: Chain conveyor, roller conveyor, belt conveyor can be custom build according your application |
Other Performance | |
Load position sensing by photocell | YES |
Machine safety stop when door open | YES |
Film Automatic Clamp & Cut Unit | |
Cutter | Yes (blade) |
Film tail clamp unit | Yes ( Pneumatic control) |
Pneumatic system (customer supply) | 0.6-0.8Mpa |
Electrical Features | |
Power supply voltage | 380 V 3 Phase - 50/60 Hz |
Power | 1.1 Kw (Not include conveyor) |
Looking for the Horizontal Orbital Stretch Wrapper?
Contact us soon. And our experienced technicians will design and make according your product size and workshop layout.
