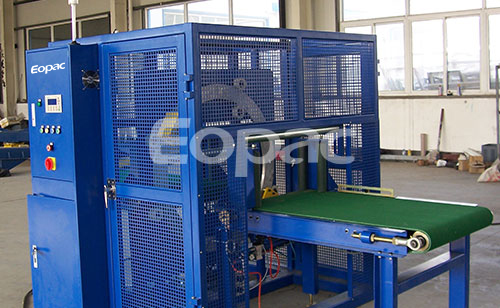

  • EH1000 Horizontal Stretch Wrapping Machine

EH1000 Horizontal Stretch Wrapping Machine

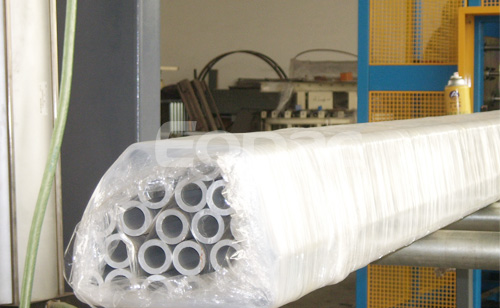

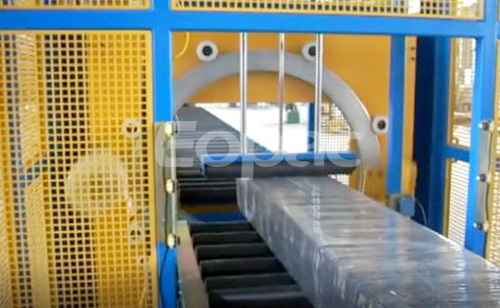

Horizontal Stretch Wrapping Machines combine with the conveyors and realize automatically packing. It widely used in Panels, Plasterboard, sandwich boards, pipes, timber and other long loads. The stretch film holds multiple products tightly together to prevent damage caused by vibration during transport. Ring sizes from 500mm to 2200mm to custom build for horizontally wrapping your loads

Product Details

    Machine Control System
    Siemens PLC + Siemens 7’’Touch screen
    Size of The Loads  to be Wrapped
    Packing efficiency4m-12m per min. (Based on Film width=500mm)
    Min load diagonal200mm
    Max load diagonal800mm
    Max load weightDepend on conveyor
    Film Delivery System
    CarriageBrake film carriage
    Film tension adjustable

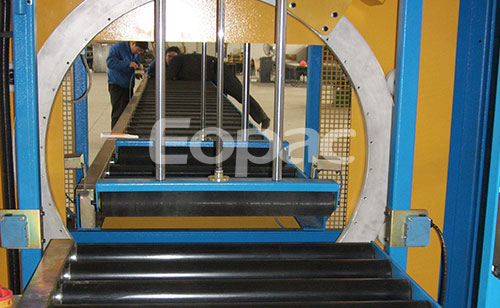

    Ring Size Drive
    Ring Inner Dia.1000mm (32’”)
    Ring driveBelt drive
    Brake motor=1.1kw
    Ring rotation speed15-40rpm ( adjustable)
    Ring soft start & stopYES
    ConveyorHeight=800mm (Standard )
    Conveyor Speed: 12m/min
    Conveyor type : 3 or  rows Chain conveyor , roller conveyor , belt conveyor can be custom build according your application
    Other Performance
    Load position sensing by photocellYES
    Machine safety stop when door openYES
    Film Automatic Clamp & Cut Unit
    CutterYes (blade)
    Film tail clamp unitYes ( Pneumatic control)
    Pneumatic system (customer supply)0.6-0.8Mpa

    Electrical Features
    Power supply voltage380 V 3 Phase - 50/60 Hz
    Power1.1 Kw (Not include conveyor)
    Machine weight & size
    Machine size2200mm (L)
    2000mm (W)
    2200mm (H)
    Approximate Machine net weight1000kg
    Stretch Film Roll detail
    Film Max. external diameter (D):230 mm
    Internal diameter (d):76 mm
    Film width:500 mm (20’’)
    Film thickness:17-35 µm

    Looking for the Horizontal Orbital Stretch Wrapper? Contact us soon. And our experienced technicians will design and make according your product size and workshop layout.

    Options available to custom build to meet specific needs

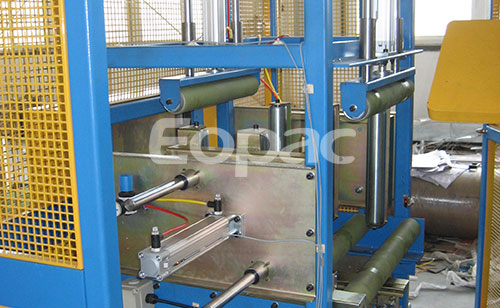

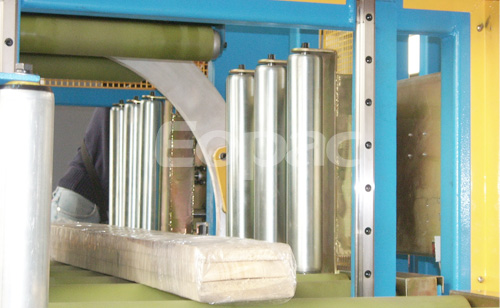

    Stabilizers support top, bottom and side of the product and guide the product guide through the wrap zone during the wrapping process.  Particularly suitable for light and unstable products.



    Chain conveyor, belt conveyor, roller conveyor to custom build according your application

    Our Stretch wrappers ensure your loads(pallets) are properly wrapped and safety shipped, reducing shipping damage in the supply chain.

     EH1000 Horizontal Stretch Wrapping Machine

     EH1000 Horizontal Stretch Wrapping Machine

Request a Quote
Product Name: EH1000 Horizontal Stretch Wrapping Machine
