Economic Stretch Wrap Machine:
Max packing capacity is 1200mm x 1200mm x 2400mm (LXWXH), Weight capacity =2000kgs. Suitable 90% pallet size.
Advantage-- Save labor, low investment, small space occupy, improve packing efficiency, reduce loads damage during shipment.
Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 500mm (L) X 500mm (W) |
Max load size | 1200mm (L) X 1200mm (W) |
Max load height | 2400mm (Option:2800mm, 3000mm) |
Max load weight | 2000kg (4400lbs) |
Machine Performance | |
Packing efficiency | 20-30 loads/hour |
Load height sensing by PE | YES |
Turntable soft start & stop | YES |
Turntable rotation speed: | 3-12 rpm adjustable |
Turntable diameter | 1650mm (Option: 1800mm, 2000mm,2200mm, 2400mm) |
Turntable height | 78mm |
Move the machine with forklift | Front & Rear |
Carriage Up/down Speed | Adjustable |
Film Delivery System | |

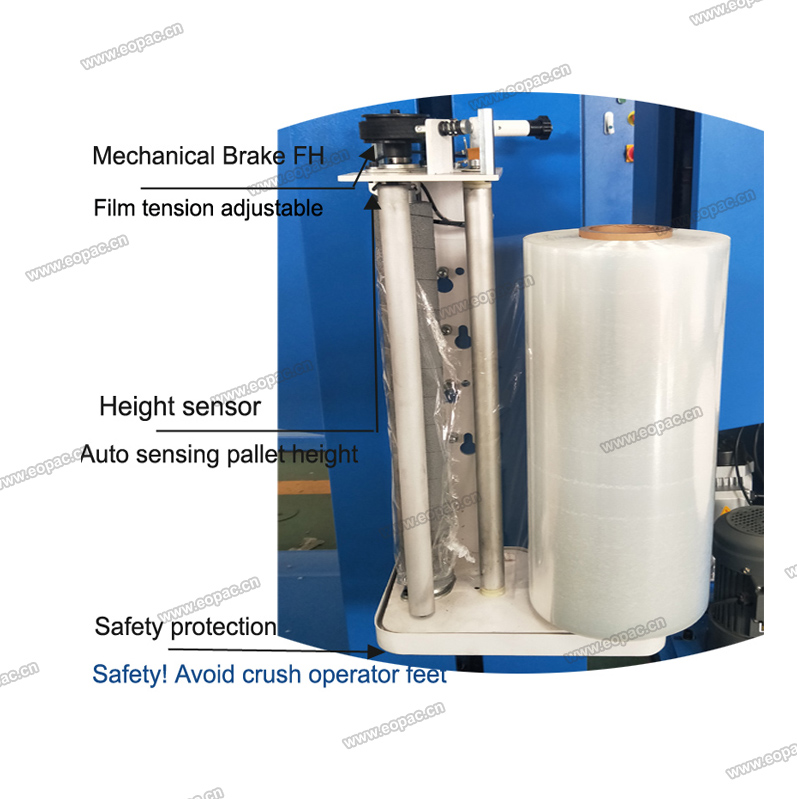

Carriage | Mechnical Brake film carriage, Film tension adjustable |
Electrical Features | |
Power supply voltage | 220 V 1Phase – 50/60 Hz |
Power | 1.2Kw |
Machine Weight & Size | |
Machine size (LXWXH) | 2575mm X1650mm X2760mm |
Machine weight | N.W. 550KG G.W.650KG |
Options available to custom build to meet specific needs
1. RAMP
Easy to place the load on the turntable of stretch wrapping machine with a pallet jack.
2. BIGGER TURNTABLE DIAMETER
Increase length and width of your loads: 1800mm; 2000mm
3. WEIGHT CAPACITY
Increase weight capacity for heavy loads (2500kgs, 3000kgs);
4. EXTEND PACKING HEIGHT
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm
