Panel /Boards Packaging Machine

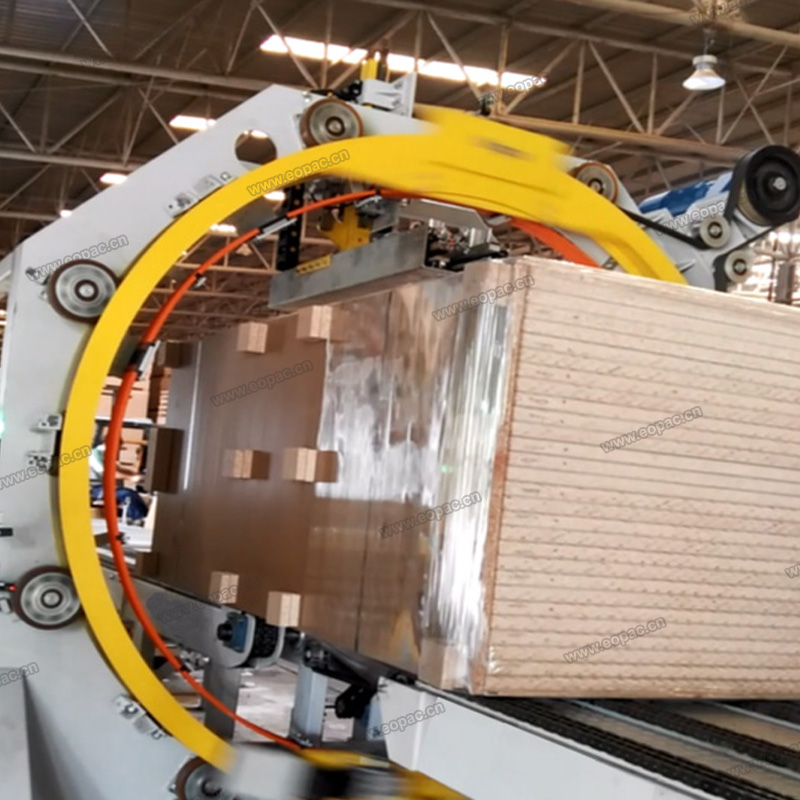

Boards Packaging Line is designed to pack the boards all six sides with stretch film. Widely used in Plasterboards, MDF, OSB, Veneers etc. All six sides packing protect the boards from moisture and dust.
Share:
Brochure

Product Details

    Wrapping Unit   (EH2200)

    Size of boards to   be wrapped

    L3000*W1200*H1200mmmax

    Stacked boards   weight:

    2500kgs (max)

    (can be tailor make according your boards size)

    Horizontal wrapper

                       Inner diameter :


    Φ2200mm

                       Ring speed :

    30rpmadjustable

                       Ring drive motor:

    4kw

    Rotating table

                       Rotation diameter:

    Φ3200mm

                      Table conveyor:

    chain conveyor

                       Conveyor motor:

    3kw

    Table drive:

    Slew bearing drive; Motor: 3kw

    Machine power:

    3P 380V+15%,-10%),50Hz

    Machine size:

    6500mm×2900mm×3000mm (LXWXH)

    Packing efficiency

    20 loads/hour (depend on the load size)



    u  Advanced & high-resolution Siemens control system.Siemens 7’’ touch screen is easy to operate.

    u  4 wrapping programs and pass-by are available for the customer to choose.

    u  Customers can adjust the packing layers according to their handling and transportation needs.

    u  Automatic packaging for different board sizes without manual operation.

    u  When stretch wrapping finish, the film will be cut and clamped automatically.

    u  Optional: Automatic bottom skid feeding. Insert the skid underneath the stack boards. Easy to unload and store the wrapped boards.

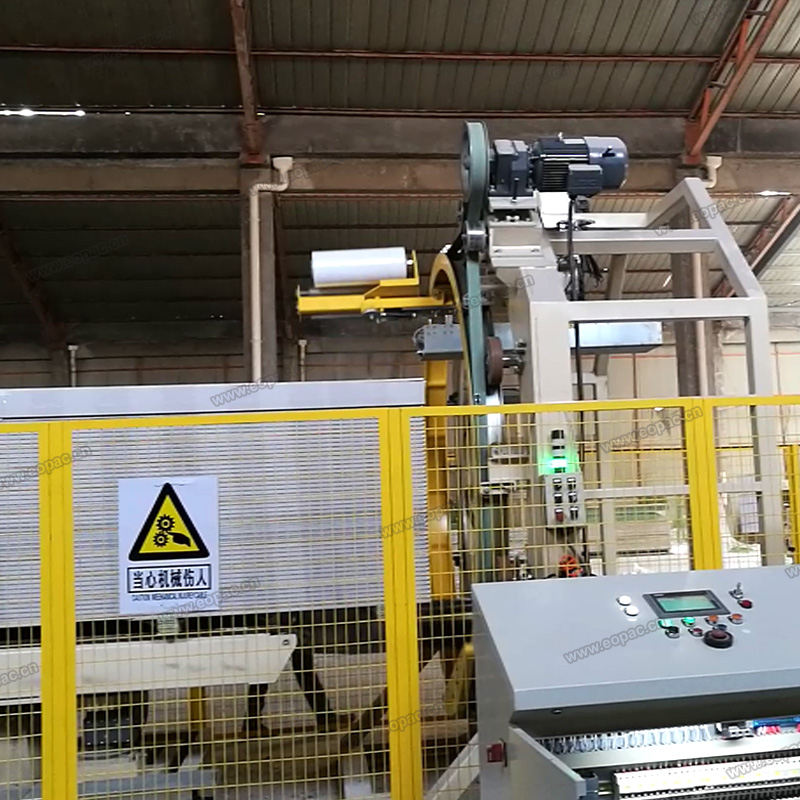

    u  The safety fence is equipped with interlocked system.




Request a Quote
Product Name: Panel /Boards Packaging Machine
